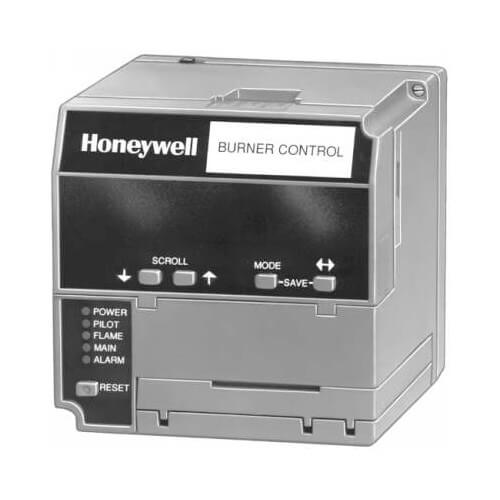

Burner Control w/ On/Off-LF Proven Purge, Intermittent Pilot Valve

Overview: Microprocessor-based integrated burner control for automatically fired gas, oil, coal or combination fuel single burner applications. Provides safety, functional capability and features beyond conventional controls.

Features:

• Functions include automatic burner sequencing, flame supervision, system status indication, system or self-diagnostics and trouble shooting.
• Access for external electrical voltage checks.
• Application flexibility and communication interface capability.
• Five LEDs provide sequence information.
• Five function Run/Test Switch.
• Interchangeable plug-in flame amplifiers.
• Local or remote annunciation of operation and fault information (optional).
• Nonvolatile memory retains history files and lockout status after loss of power.
• Compatible with existing Honeywell flame detectors.
• Includes Keyboard Display Module.
• Interlocks: Running
• Flame Establishing Period - Pilot: 4 sec or 10 sec
• Flame Establishing Period - Main: 10 sec or Intermittent
• Preignition: Yes
• AirFlow Check: User selectable
• Second Stage Pilot Valve: Intermittent
• Pilot Type: interrupted
