Description
Note: To make this direct replacement for T7515A1006 or C7130A1001, customer must also purchase TR29: Wall Mounted Remote Bulb Enclosure.

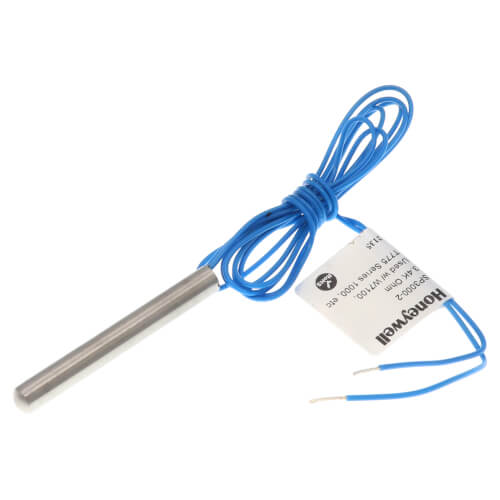

The SP3000 Temperature Sensors are for use with electronic controllers where linear PTC sensors are required (T775 Series 1000, W7100, W7600, W7620, R7380J,L) in immersion or strap-mounted discharge applications.

Features:
  • Requires no settings or calibration

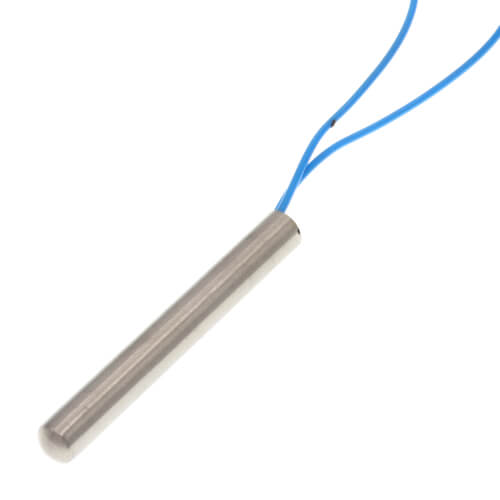

  • Platinum positive temperature coefficient (PTC) sensing element
  • Resistance range is 2900 to 4400 ohms
  • Suitable for mounting in immersion well
  • Can be strapmounted to discharge pipe of boiler or chiller

Specifications:
  • Dimensions (in.): 1/4 in. dia. X 2 in. probe
  • Used With: T775 Series 1000, R7380J,L, W7100, W7600, W7620
  • Sensor: PT3000, 3484 ohms @ 77 F PTC
  • Operating Temperature Range (F): -40 F to +302 F
  • Operating Temperature Range (C): -40 C to +150 C
  • Shipping and Storage Temperature Range (F): -40 F to +302 F
  • Shipping and Storage Temperature Range (C): -40 C to +150 C
  • Insertion Length (in.): 2 inches
  • Ambient Temperature Range (F): -40 F to +302 F
Read more
Specs
Sensor Type:
PT3000 3484 ohms @ 77 F
Temperature Range (F):
-40°F to 250°F
×
