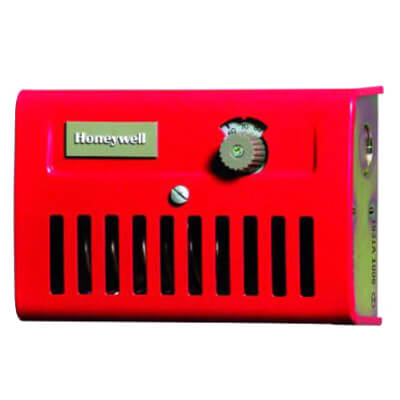

Agricultural Temperature Controller, 35 to 100 F (24 Vac or 120/240 Vac)

Provide line voltage control of heating, cooling and ventilating systems in farm buildings or storage areas.

Features

• Use in barns, poultry houses, hog barns, pump houses, milk houses and crop storage houses.
• Treated to resist corrosion.
• Slots in front and bottom of case provide maximum air circulation over the coiled sensing element.
• SPDT snap switches permanently sealed against corrosion.
• Easy mounting using screws through holes in back of case.

Specifications

• Description: Thermostats, Farm-O-Stat, type: Agricultural Temperature Controller, Output:2 Spdt
• Application: Provide line voltage control of heating, cooling and ventilating systems in farm buildings or storage areas
• Type: Agricultural Temperature Controller
• Output: 2 SPDT
• Voltage: 120/240 Vac
• Color: Red finish
• Contact Ratings (24 Vac): 2.0A AFL
• Contact Ratings (120 Vac): 7.4 AFL, 44.4 ALR
• Contact Ratings (240 Vac):3.7 AFL, 22.2 ALR
• Dimensions: 4-5/16 in. high x 6-1/16 in. wide x 2-7/8 in. deep
• Sensor Element: Coiled Copper Tube
• Setpoint Temperature Range: 0 C to 40 C
• Maximum Operating Temperature (F): 120F, 50 C
• Differential Temperature (F): 2 F, 1.1 C
