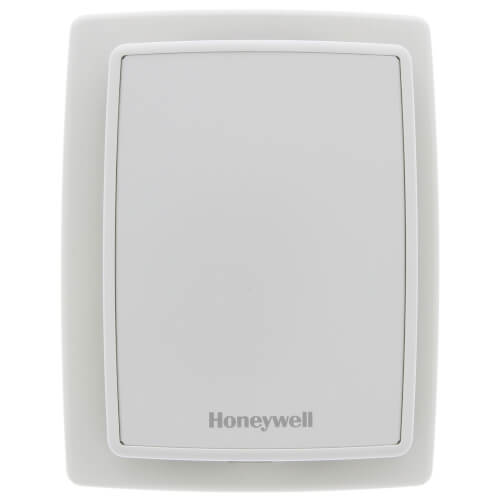

1420 ohm Electronic Thermostat Sensor (Taupe)

The T7047 Electronic Thermostats, Remote Space Sensors are used with T7300 thermostats and W973 controller to provide modulating space temperature control.

Product Features:

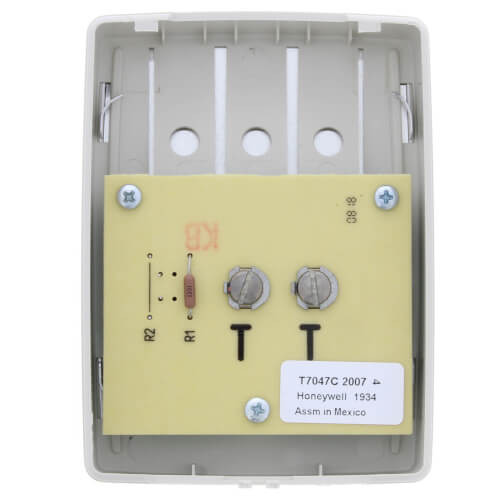

• T7047C is a 2-wire remote space sensor for applications requiring remote setpoint adjustment.
• T7047G is a 2-wire remote space sensor used as one half of an averaging sensor network.
• T7047C,G contain a carbon type negative temperature coefficient (NTC) thermistor sensing element.
• T7047H is a thin-film, platinum 1K (at 0 C), positive temperature coefficient (PTC) temperature sensor only and is for use with the Excel 80/100/500/600 Controllers.
• Locking cover.

Product Specifications:

• Application: Used in Series 70 control systems to provide modulating space temperature control
• Mounting: Mounts on wall or 2 x 4 inch vertical outlet box
• Operating Temperature Range: 40 F to 110 F
• Dimensions: 4 5/8 in. high x 3 5/8 in. wide x 1 5/16 in. deep
• Used with: T7300/Q7300
