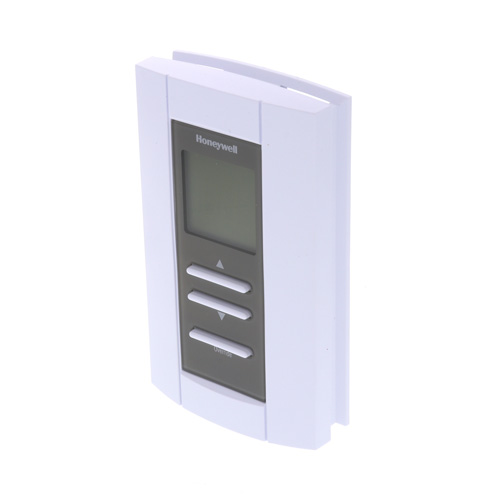

ZonePRO Modulating Thermostat w/ 2 additonal outputs, TB7980B1005
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$330.98 each
In Stock
Get 6 Mon, Jun 15
Order by today, receive Monday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
Vertical
50°F - 95°F
4-9/16"
1" Depth
Description
–
The ZonePRO(R) thermostats are for low-voltage pressure-dependent variable air volume (VAV) applications. ZonePRO can also be used for hydronic perimeter heating/cooling and bypass box with or without reheat. The four models cover modulating applications, floating applications and applications that require up to two additional outputs for reheat.
Features
Specifications
Features
- Provides modulating (2 to 10 Vdc analog) control (TB7980)
- Provides floating control (TB6980)
- Provides 2 additional outputs (TB6980B and TB7980B)
- Provides max. and min. setpoints for heating and cooling
- Provides a night setback (NSB) terminal for energy savings
Specifications
- Description: Modulating (0-10Vdc) control with 2 additional outputs
- Output Signal: 0-10 Vdc or 2-10 Vdc
- Setpoint Temperature: 50F to 95F
- Mounting: Wall mount
- Dimensions: 2 5/8 in. wide X 4 9/16 in. high X 1 in. deep
- Frequency: 60 Hz
- Power Supply: 24 Vac
- Output Signal Burden: 0-10V, 10k min
- Additional Outputs: 1 TRIAC, 1 Analog/TRIAC
Specs
–
| Mount: | Vertical |
|---|---|
| Voltage: | 24V |
| Temperature Range (F): | 50°F - 95°F |
| Frequency: | 60 Hz |
| Height: | 4-9/16" |
| Width: | 2-5/8" |
| Depth (Inches): | 1" |
