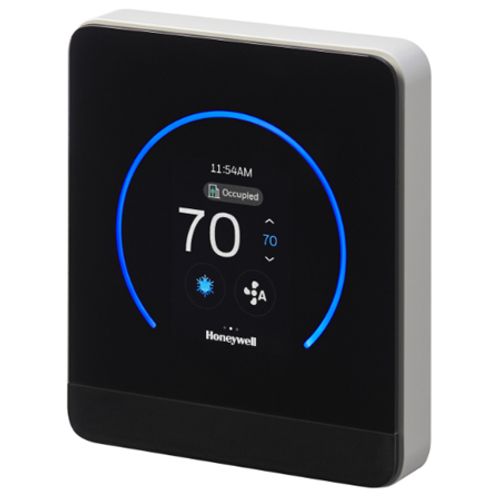

TC300 Commercial Thermostat w/ Wi-Fi & Bluetooth Connectivity, 2H/1C Heat Pump, 1H/1C Conventional, TC320B-G

TC300 thermostat models are advanced, highly configurable devices providing building automation connectivity well suited for commercial building applications. Supported equipment types include 2/4-Pipe FCU, 1H/1C conventional, and 2H/1C heat pump plus water source heat pump. The TC300 models support BACnet MS/TP and Modbus communications, while the TC320 models also support BACnet IP via Wi-Fi.

Features:

• Flexible configurations for nearly every 2-pipe and 4-pipe fan coil or single stage heat/cool application
• Remote control and monitoring via mobile user app (wireless variants)
• 2H/1C Heat Pump Air/Water source and 1H/1C Conventional plus humidification/dehumidification
• Water source heat pump optional water valve control and proof of waterflow with compressor lockout
• Hybrid changeover mode ensures greater comfort for 2-pipe systems during system transitions
• On/off, floating, modulating, or 6-way valves
• Multi-speed or variable speed fan
• Energy saving supply-air temperature control using ASHRAE guideline 36-2021, Sec. 5.22
• FCU dehumidification with reheat option
• Building automation integration via BACnet MS/TP, MODBUS, or BACnet IP (wireless variants)
