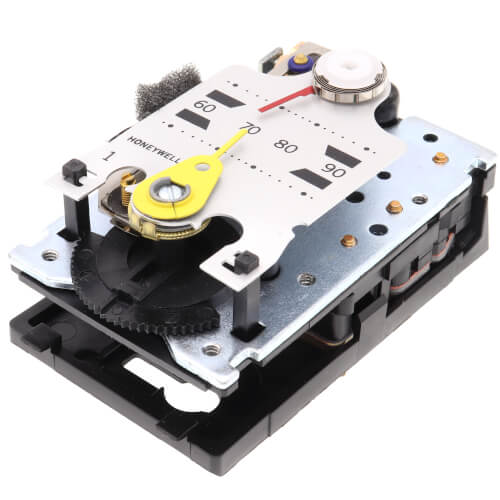

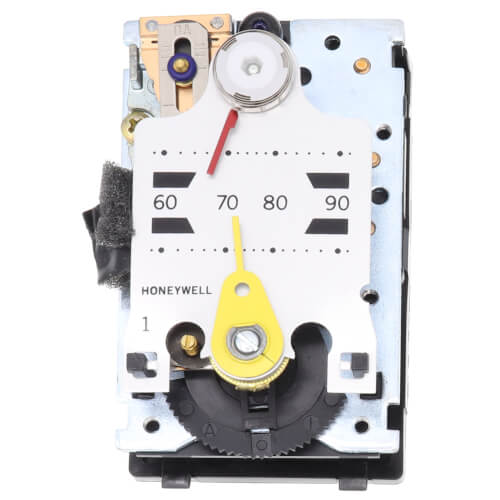

Pneumatic Thermostat Direct Acting, Wall Thermostat and Beige Cover (59-Degree to 90-Degree F setpoint range), TP970A2283

Pneumatic thermostat gives comparable control of pneumatic valves and damper actuators in heating & air conditioning systems. Replacement kits available for Johnson, Powers, Robertshaw, Barber-Colman, and past Honeywell 2-pipe pneumatic thermostats.

Features

• Honeywell's best pneumatic thermostat-TP970 series.
• Shock-resistant, suspension-mounted thermostats provide dependable performance and responsiveness year in and year out.
• Pilot operated for high capacity.
• Direct Acting (DA) and Reverse Acting (RA) models are available.
• Wide throttling range models for Zero Energy Band (ZEB) operation are available.
• Adapter plate in Convertastat and Modernization kits covers existing thermostat wall mark.

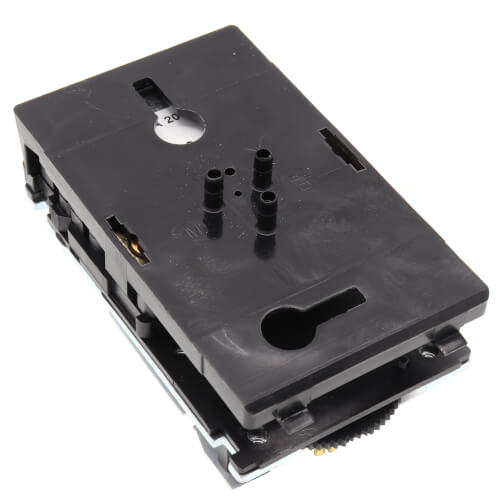

• Backplate has molded air connections-no separate fittings needed.
• Universal locking cover with satin chrome finish and horizontal, vertical, or blank window options.
• Typical Wide Throttling Range Application.

Specification

• Application: Heating
• Airflow Usage: 0.011 scfm (5.2 mL/s)
• Dimensions (in.): 3 1/4 in. high x 2 in. wide x 1 5/8 in. deep
• Maximum Safe Operating Pressure (psi): 25 psi
• Maximum Safe Operating Pressure (kPa): 170 kPa
• Temperature Range (F): 100 F maximum
• Includes: Thermostat and beige cover.
• Comments: Tradeline Kit
• Mounting: Wall mount
• Setpoint Temperature Range (F): 59 F to 90 F
• Shipping and Storage Temperature Range (F): 150 F maximum
• Shipping and Storage Temperature Range (C): 66 C maximum
• Sensor Element: Bimetal
• Throttling Range (F): 2 F to 10 F (factory set 4 F)
• Throttling Range (C): -16 C to -12 C (factory set -15 C)
• Action: Direct Acting
• Setpoint: Single
• Number of Pipes: 2
