$127.63 each
In Stock
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Normally Closed
120v, 110 Vac, 110v
1/4"
Straight Thru
Directly in pipe or on support bracket
Aluminum
Description
–
Overview:

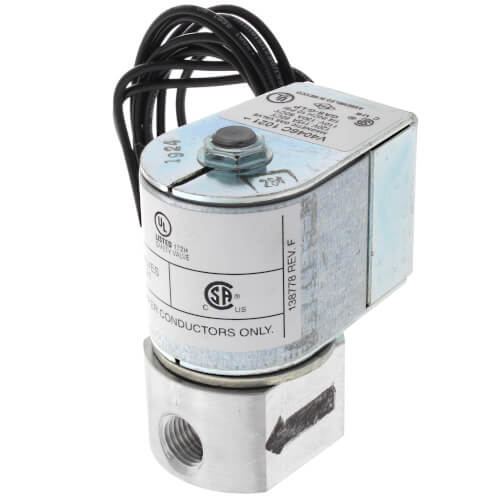

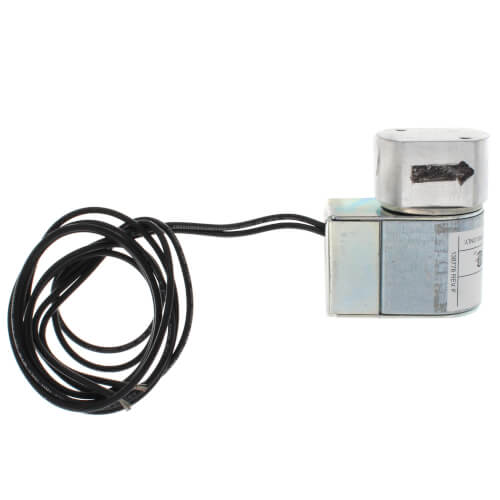

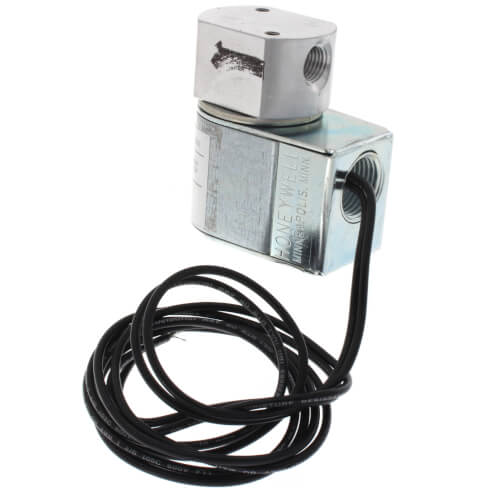

Provide on-off control of natural, LP and manufactured gases to pilot burners in industrial and commercial applications.
Features:
Magnetically operated, normally closed.
Provide instantaneous action when energized.
On power failure, valve closes in one second maximum.
Use in any position, directly in pipe line or on support bracket.
Replace the solenoid coil without removing the valve body from the piping connections.
Straight-through valve pattern.
Available in line voltage or low voltage models.
Provide on-off control of natural, LP and manufactured gases to pilot burners in industrial and commercial applications.
Features:
Specs
–
| Size: | 1/4" |
|---|---|
| Body Pattern: | Straight Thru |
| Mount: | Directly in pipe or on support bracket |
| Electric Connection: | Two 36" leadwires and 1/2" conduit bushing |
| Material: | Aluminum |
| Voltage: | 120v 110 Vac 110v |
| Height: | 3" |
| Width: | 2-5/8" |
| Frequency: | 50 Hz 60 Hz |
| Power Consumption: | 8 W |
| Temperature Range (F): | -40°F to 125°F |
| Min Temp (F): | -40°F |
| Max Temp (F): | 125°F |
| Position: | Normally Closed |
