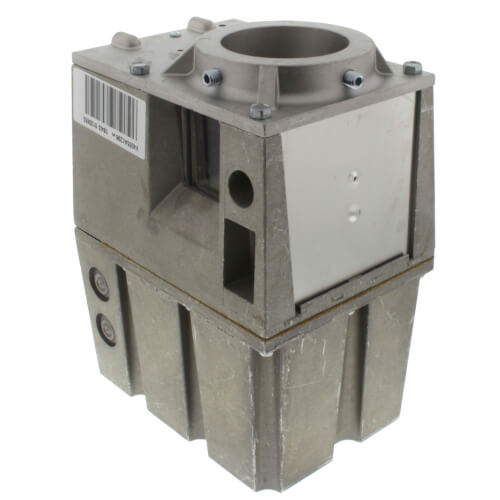

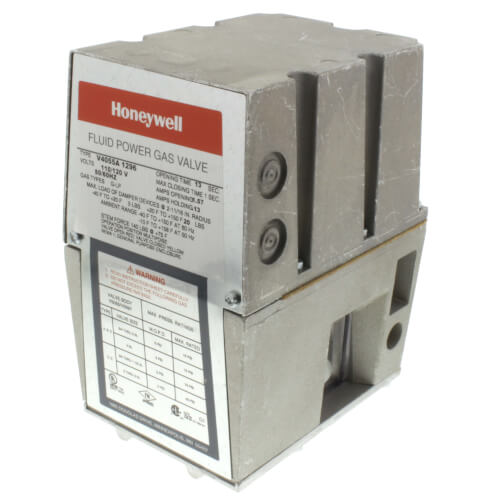

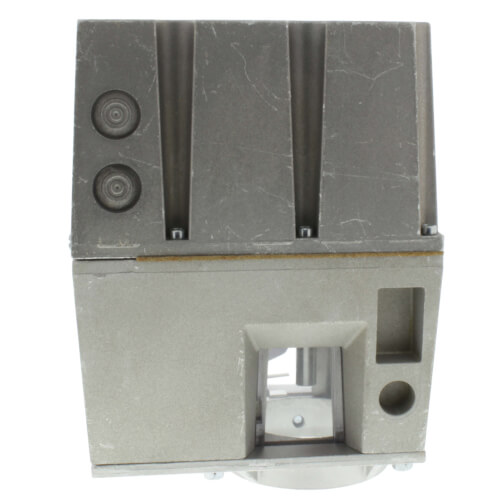

Low Pressure ON-OFF Actuator (Used w/ V5055/V5097A,B Valve Bodies)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$916.78 each
In Stock
Get 8 Thu, Jun 25
Order by today, receive Thursday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v
-40°F to 150°F
Description
–
Use in combination with V5055 or V5097 Gas Valves to control gas supply to commercial and industrial burners.
Features:
Use where smooth light off is important.
One-second maximum closing time.
Continuously displays the valve position with a red indicator when open and a yellow indicator when closed.
Mount in any position directly to valve bonnet with three setscrews.
Provide final safety shutoff service when used with V5055 or V5097 Gas Valves.
Damper Shaft: No
Timing (Closing) < 1 sec: Yes
Timing (Opening): 13 sec
Auxiliary Switch Contact Ratings (120 Vac): 9.8 AFL, 58.8 ALR, 1/2 hp
Auxiliary Switch Contact Ratings (240 Vac): 4.9 AFL, 29.4 ALR, 1/2 hp
Internal Auxiliary Switch: Yes - adjusted to 90% stroke
Proof of Closure Auxiliary Switch: No
Used With: V5055;V5097 Gas Valves
Features:
Specs
–
| Max Operating Pressure: | 5 psi |
|---|---|
| Voltage: | 120v |
| Hertz: | 60 |
| Temperature Range (F): | -40°F to 150°F |
| Product Type: | Actuator |
| Actuator Type: | On/Off |
