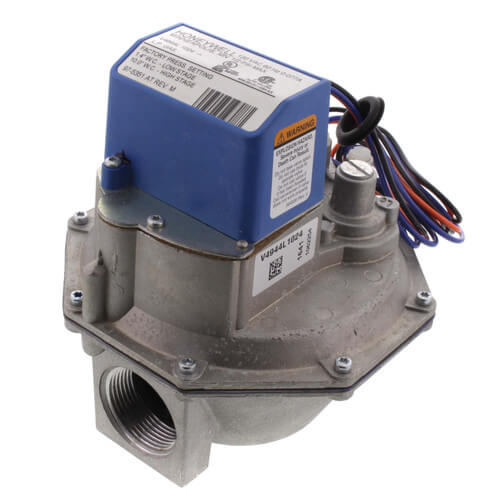

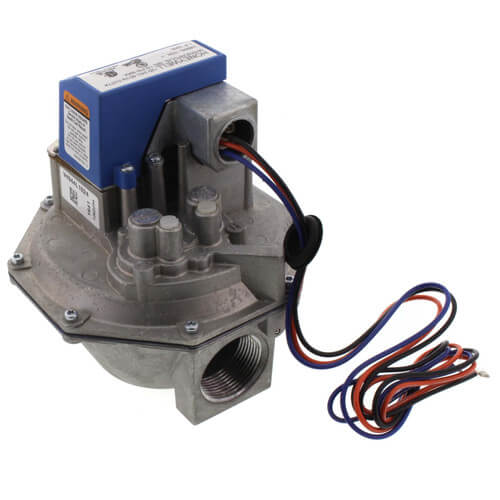

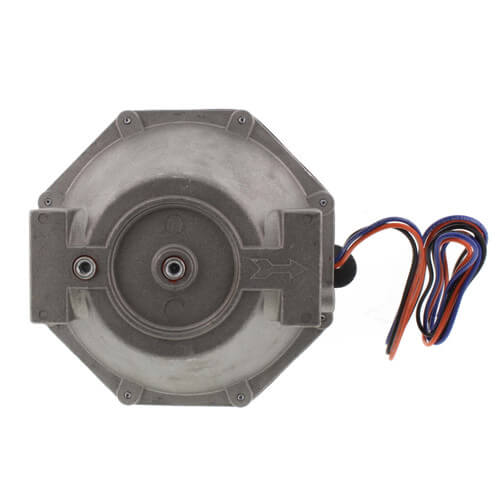

Diaphragm Gas Valve, Two Stage Pressure Regulating, Rapid Opening, 1-1/4" NPT pipe size
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$647.04 each
In Stock
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Propane
120v
1/2 psi
-40°F Min Temp
-40°F to 150°F
150°F Max Temp
Description
–
Overview:
V4944B,L,N/8944B,C,L,N are Two-stage Pressure Regulating Gas Valve. These valves are used on boilers, unit heaters, duct furnaces, makeup air and rooftop heaters.
Features:
V4944B,L,N/8944B,C,L,N are Two-stage Pressure Regulating Gas Valve. These valves are used on boilers, unit heaters, duct furnaces, makeup air and rooftop heaters.
Features:
- Designed for replacement for V4844/V8844 Gas Valves.
- Suitable for use on atmospheric boilers, commercial water heaters, and rooftop heaters.
- V4944/V8944B,C,L,N models are solenoid-operated diaphragm valves that combine the functions of safety shutoff and pressure regulation in a single unit.
- V4944/V8944B,N are for use with natural gas.
- V4944/V8944C,L are for use with LP gas.
- Valve body of die-cast aluminum with a straight-through pattern.
- V4944 are used with line voltage, dual-stage controllers; V8944 are used with 24 Vac dual-stage thermostats or controllers.
- Valve closes on power failure; recommended for final shutoff service.
Specs
–
| Valve Type: | Rapid Opening Two Stage |
|---|---|
| Capacity (CFH): | 310 to 1030 |
| Min Capacity (CFH): | 310 |
| Max Capacity (CFH): | 1030 |
| Pressure Rating: | 1/2 psi |
| Fuel Type: | Propane |
| Voltage: | 120v |
| Frequency: | 60 Hz |
| Min Temp (F): | -40°F |
| Temperature Range (F): | -40°F to 150°F |
| Max Temp (F): | 150°F |
| Electric Connection: | 30" leadwires and cover for electrical conduit connection provided. 1/4" Spade Terminal |
| Size: | 1-1/4" |
