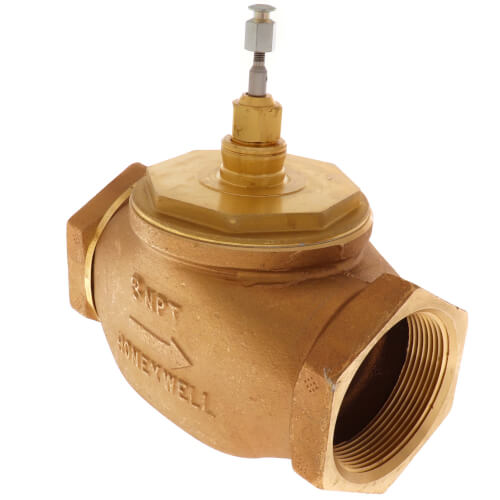

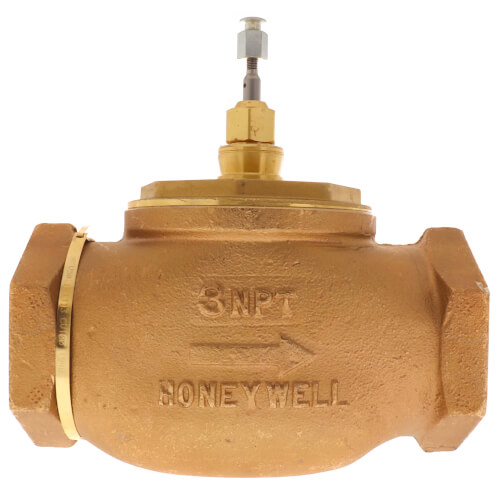

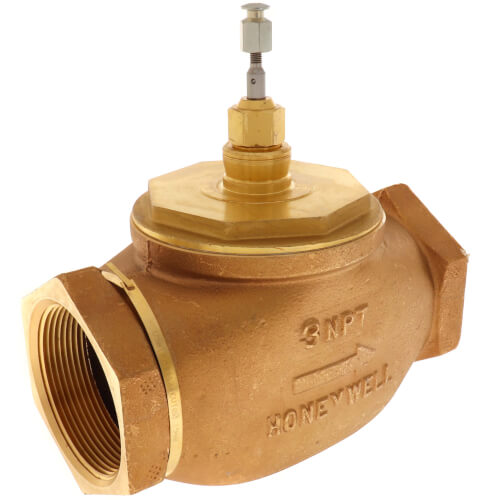

3" Two-way Female NPT Globe Valve, Water, Steam or Glycol (100 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
V5011F1113 has been discontinued
Discontinued February 22, 2025
This product was discontinued by the manufacturer.
MANUALS (2)
Product Highlights
–
3"
100 Cv
Threaded Connection
@100°F (Water) 250 MAX PSI
2-Way
Description
–
Used for two-position or modulating control of steam and water and glycol solutions (to 50 percent concentration) in heating or cooling systems.
Features
Specifications
Features
- Sizes range from 2-1/2 to 3 inches.
- Direct acting
- High pressure steam models with stainless steel trim.
- Spring-loaded, self-adjusting packing.
- Stainless steel stem prevents corrosion.
- Valve designs provide equal percentage characteristics of flow for close control of water, and linear characteristic of flow for close control of steam or chilled water.
- Valves utilize direct mounting valve actuators or Q5020/Q5022A linkages with Direct Coupled Actuators or Pneumatic Valve Actuators to operate the valve.
Specifications
- Valve Type: Globe Valve
- Body Pattern: Two-way
- Flow Characteristic: Equal Percentage
- Controlled Medium: Chilled or hot water with up to 50% Glycol
- Connection Type: Female NPT
- Max. Safe Operating Pressure: 250 psi at 100 F water
- ANSI/ASME Rating: 150
- Maximum Differential for Quiet Water Service (psi): 20 psid
- Static Pressure Rating: ANSI 150
- Fluid Temperature Rating: 40 F to 337 F
- Materials (Body): Red Brass
- Materials (Seat): Brass
- Materials (stem) Stainless Steel
- Used with: Q5001/Modutrol IV Motor; MP953; ML6420,21A,25; ML7420/ML7421A/ML7425; ML6984/ML7984; Q5020/DCA
Specs
–
| Size: | 3" |
|---|---|
| Body Pattern: | 2-Way |
| Connection Type: | Threaded |
| Flow Capacity (Cv): | 100 |
| Action: | Direct Acting |
| Flow type: | Equal Percentage |
| Max Pressure (PSI): | @100°F (Water) 250 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
1 Question1 Question
Q: Would I need some sort of valve stem extension to hook up a 13" Pneumatic Valve Actuator (MP953E1443) to a 2.5" two way globe valve (V5011F1105)?
Asked by Stephen 3 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Stephen. Yes, in order to use this valve with a MP953E series actuator, you will need stem extension 14004697-001 (included with the actuator).
