Note: If using this as a replacement to V5011F1113 please note that it is a functional replacement with no flange to NPT adapter.

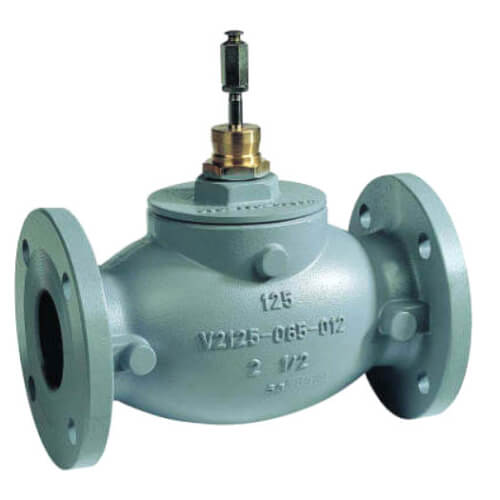

VGF Flanged Globe Valves are used for 2-position or modulating control of steam, hot water, or chilled water-glycol solutions up to 50 percent concentration in heating, ventilation and air conditioning (HVAC) systems. They can be operated by ML6984/7984, ML6420/6425, ML6421/7421 Electric Linear Actuators, MP953 Pneumatic Actuators, Modutrol Motors with Q5001 valve linkage, or MN/MS Series Direct Coupled Actuators with Q5020 or Q5022 valve linkage.
Features
- ANSI Class 125 and Class 250 cast iron bodies with flanged end connections
- Equal percentage and linear flow characteristics
- Face-to-face flange dimensions per ANSI/ISA S75.03 standard
- Sizes from 2-1/2 to 6 in.
- Stainless steel trim standard for long life span
- ANSI CLass III seat leakage
- Steam inlet pressure up to 125 psig and 353 F maximum temperature
- Self-adjusting packing
- Accurate positioning with equal percentage and linear flow characteristics to ensure precise temperature control
- Universal bonnet for direct-coupled electric and pneumatic actuators for easy mounting, or linkage coupled Modutrol Motors and MN/MS Series direct coupled actuators.
- Not suitable for combustible gasses.
Specs
| Size: | 3" |
|---|---|
| Flow Capacity (Cv): | 115 |
| Body Pattern: | 2-Way |
| Connection Type: | Flanged x Flanged |
| Flow type: | Equal Percentage |
| Max Pressure (PSI): | 175 |
| Valve Action: | Stem down to close |
| ANSI/ASME Rating: | 125 |
| Temperature Range (F): | Steam: 353°F 20°F to 250°F |
| Stem Travel: | 1-1/2" |
| Valve Type: | Globe |
| Controlled Fluid: | Chilled or hot water with up to 50% Glycol Steam |
| Differential: | 34 psi |
| Material: | Cast Iron ASTM A126 Class B |
| Bonnet Size: | 1-3/8" |
