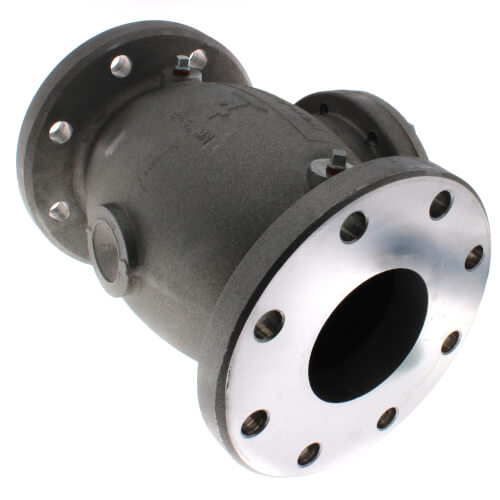

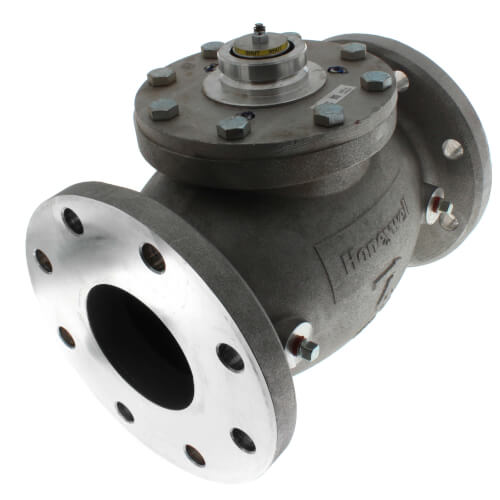

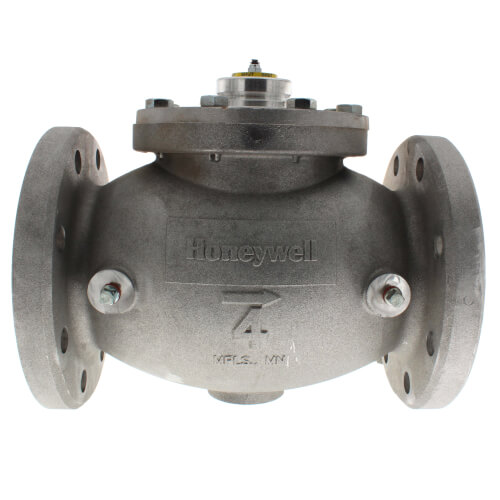

4" Flanged Industrial Gas Valve with On-off safety shut-off
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$3,144.59 each
In Stock
Get 1 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (2)
This item replaces: V5055B1150
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Propane, Natural Gas
-40°F Min Temp
150°F Max Temp
-40°F to 150°F
V9055 Series, V4055 Series, V4062 Series
4"
Description
–
Overview:
Safety shutoff valves used with V4055, V4062 and V9055 fluid power actuators to control gas flow to commercial and industrial burners.
Features:
Use with natural or LP gases.
Mount directly in gas supply line.
Include 1/4 in. NPT upstream and downstream taps and plug.
4 in. models have only flanged connections.
V5055 normally closed valves are rated for final shutoff service safety shutoff.
V5055A,C,D,E Valves are for On-Off service.
V5055B Valve has a characterized guide and in combination with the V4055, V4062, and V9055 Fluid Power Actuators, provides slow-opening, hi-lo-off, and modulating functions respectively.
V5055C,E,F Valves have a double seal and are used with V4055D,E Actuators to provide proof-of-closure switch and valve seal over-travel interlock.
V5055D,E,F Valves are for high pressure applications.
Safety shutoff valves used with V4055, V4062 and V9055 fluid power actuators to control gas flow to commercial and industrial burners.
Features:
Specs
–
| Capacity (CFH): | 10200 |
|---|---|
| Min Temp (F): | -40°F |
| Max Temp (F): | 150°F |
| Temperature Range (F): | -40°F to 150°F |
| Used With: | V9055 Series V4055 Series V4062 Series |
| Size: | 4" |
| Fuel Type: | Propane Natural Gas |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
2 Questions2 Questions
Q: 4" Flanged Industrial Gas Valve with On-off safety shut-off SKU: V5055A1228 What solenoid works with the above gas valve?
Asked by Tim 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Tim, thanks for writing in. This valve will work with V4055, V4062, V5055 and V9055 fluid power actuators to control gas flow to commercial and industrial burners.
Was this review helpful to you?
Q: I would like to have a drawing of this valve if at all possible. I need to verify it is 9" between the flanges. Also I need to know what gaskets are used for this and if I can purchase them at the same time?
Asked by Ryan 5 years ago
Add your answer
Verified Reply- SupplyHouseHi Ryan! Two gaskets will be included with the valve. Please reference page 7, Figure 3 for the dimensions of this item: https://s3.amazonaws.com/s3.supplyhouse.com/product_files/V5055A-F-User6.pdf
