Description
Overview:

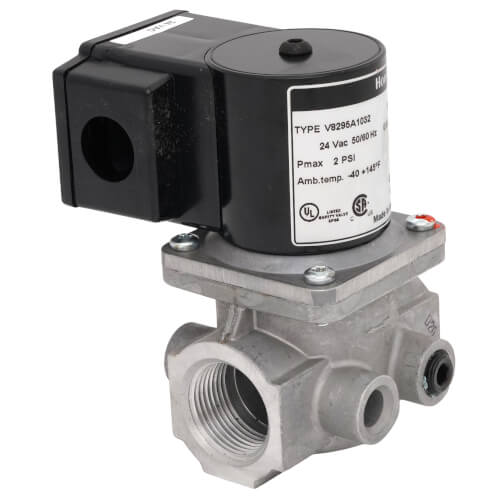

V4295A/V8295A are normally closed and V4295S/V8295S are normally open (vent) solenoid gas valve. Suitable for use on furnaces, ovens, atmospheric burners, commercial water heaters, roof-top make-up air units, power burners, and commercial/industrial boilers.

Features:
  • V8295A,S are used with 24 Vac controllers.
  • V4295A,S are used with 120 Vac controllers.
  • Positive close off of gas flow when de-energized.
  • High valve spring force allows up to 0.7 psi back pressure at valve seat.
  • No inlet pressure influence at valve seat.
  • Inlet pressure changes do not affect ability to close valve.
  • Low operating noise.
  • Low rush-in current.
  • Upstream and downstream taps allows tapping and testing pressure points.
  • Hide Description
    Manuals (2)
    Specs
    Size:

    1"

    Capacity:

    790 cfh

    Pressure Rating:

    2 psi

    Body Pattern:

    straight-through non-offset

    Mount:

    Vertical to 90 degrees from vertical

    Voltage:

    24v

    Frequency:

    50-60 Hz

    Electric Connection:

    Screw Terminals

    Operating Temp Range:

    -40° to 140°F

    Fuel Type:

    Manufactured

    Natural Gas

    Liquid Propane

    Air

    Position:

    Normally Closed

    ×
