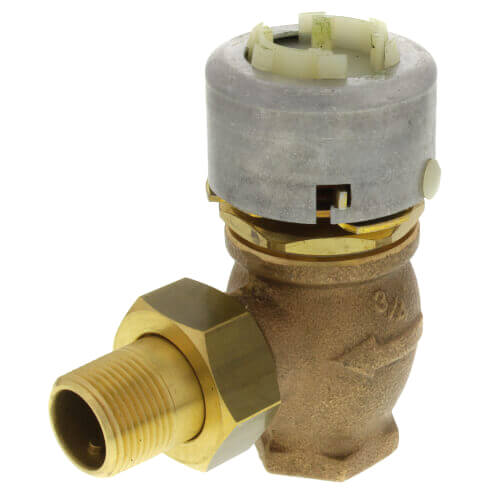

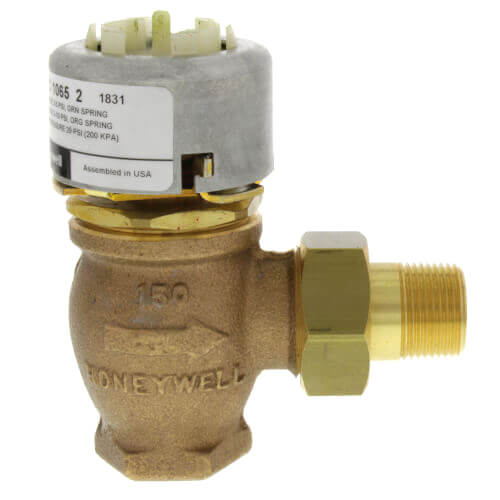

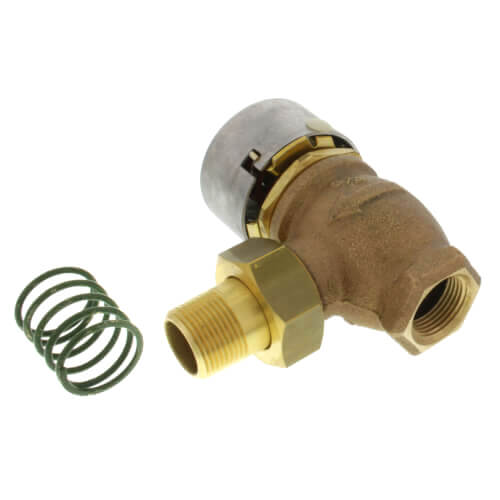

Main product image of 1/2" Angle NPT Male Union Two-Way Unitary Valve (3 Cv)

Hover image to zoom

1/2" Angle NPT Male Union Two-Way Unitary Valve (3 Cv)

Name: 1/2" Angle NPT Male Union Two-Way Unitary Valve (3 Cv)
Brand: Honeywell
SKU: VP525C1081
Price: 303.05 USD
Availability: OutOfStock

Brand:

Honeywell

SKU:

VP525C1081

Rating:

(0)

Q&A:

(0)

1/2" Angle NPT Male Union Two-Way Unitary Valve (3 Cv)

Hover image to zoom

VP525C1081 has been discontinued

Discontinued April 19, 2024

This product was discontinued by the manufacturer.

MANUALS (2)

Replacement Parts

Direct Replacement:

Two-way, Unitary, 1/2", Steam or Water (3.0 Cv)

Brand:

Honeywell

SKU:VP525C1073

(0)

Order by today, receive 6 by Tuesday

VIEW REPLACEMENT

Product Highlights

–

1/2"

FNPT x MNPT Union Connection

Angle

30 (Diaphragm), 150 (Body) MAX PSI

3 Cv

3 psi to 10 psi

Description

–

Normally-open, single-seated pneumatic radiator valve with straight through or angle body construction provides proportional control of two-pipe, hot water or steam systems. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell devices.

Features

Available in several capacities and spring ranges for various application requirements.
Easily replaceable actuator assembly for convenience of service.
Compact size for installation where space is limited.
Can be repacked without shutting down system.

Specs

–

Application:	Heating
Size:	1/2"
Spring Range:	3 psi to 10 psi
Flow Capacity (Cv):	3
Max Pressure (PSI):	30 (Diaphragm) 150 (Body)
Valve Action:	Proportional Normally Open
Valve Type:	Unitary
Max Temp (F):	Actuator Diaphragm: 230°F 240°F
Min Temp (F):	40°F
Temperature Range (F):	40°F to 240°F
Air Connections:	Push-On for 1/4" O.D. Plastic Tubing
Controlled Fluid:	Water Steam
Humidity Range:	5 to 95% RH
Body Pattern:	Angle
Connection Method:	Threaded
Connection Type:	FNPT x MNPT Union
