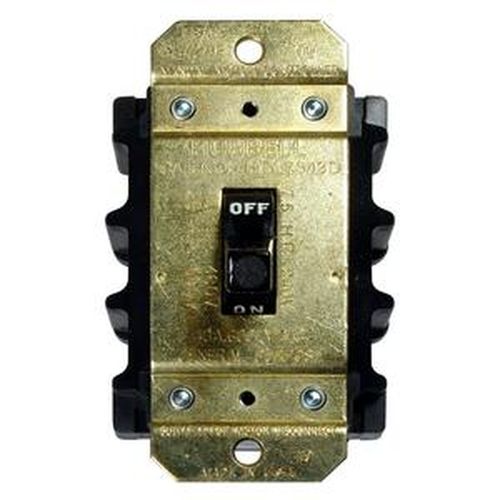

2-Pole, 40A 600V Motor Disconnect, Back And Side Wired, Short Toggle
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$73.18 each
Backorder
Get it Wed, Jul 15 - Wed, Aug 12
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
40 Amps
Stainless Steel
600V
Description
–
Switches and Lighting Control, Motor Disconnect, 2-Pole, 40A 600V, Back and Side Wired, Short Toggle
Features:
Features:
- Optional side guard for close wall applications
- Strong on/off action with quick-make slow break operation
- Thermoset body provides superior dielectric strength
- EU RoHS Indicator
- Indoor Dry Unless Protected By Additional Means
- 15 horsepower maximum
- Fabricated construction
- Inductive load capacity
- Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute
- Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load
- Electrical - Max. Working Voltage - 600V AC RMS
- Environmental - Flammability - UL94HB/VO
- Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact
- Mechanical - Mechanical Life - Min. 10,000 minimum cycles
- Mechanical - Switch Rating - 25 inch pounds
- Mechanical - Terminal Accommodations - #10 AWG Max
- Mechanical - Terminal Torque - 20 inch pounds
- Mechanical - Wire Type - Solid and stranded copper wire only
Specs
–
| Amperage: | 40 |
|---|---|
| Material: | Stainless Steel |
| Poles: | 2 |
| Voltage: | 600V |
| Phase: | 1 |
