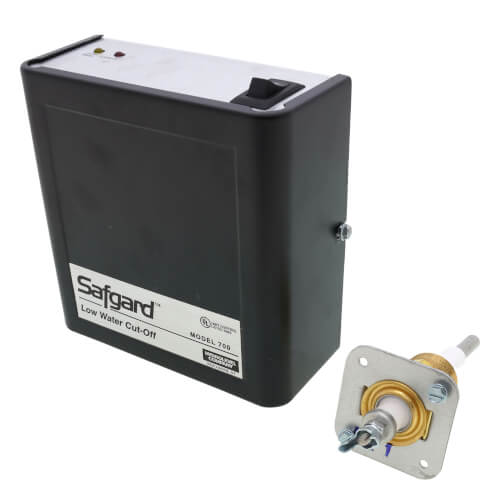

Safgard 700 Low Water Cutoff w/ Manual Reset - 24V
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$192.76 each
In Stock
Get 6 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
This item replaces: SAFGARD-700
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
160 MAX PSI
24V
Description
–
Hydrolevel low water cut-offs are electrically operated. A probe is installed in the boiler shell or external manifold and is connected to the control unit. Water is used as a conductor to complete the circuit between the probe and the boiler shell. When water is in contact with the probe, the circuit is completed; when the water level drops below the probe, the circuit opens. Hydrolevel controls provide contacts to de-energize the burner circuit in a low water condition.
700 Series Interrupts power immediately in a low water condition. Burner circuit locks-out if water remains below probe for 30 seconds. Manual reset will not trip due to power failures. Note: Can also be used as a secondary cut-off on steam boilers
Features
Specifications
700 Series Interrupts power immediately in a low water condition. Burner circuit locks-out if water remains below probe for 30 seconds. Manual reset will not trip due to power failures. Note: Can also be used as a secondary cut-off on steam boilers
Features
- Heavy-duty electro-mechanical design for long life
- Automatically shuts off burner in a low water condition to prevent boiler damage
- Low maintenance. No moving parts to wear stick or hang up, as in float devices.
- Manual reset feature will not lock out in power failures
Specifications
- Power Consumption: 2 VA
- Switching Capacity: 50 VA
- Switch Contacts: SPDT
- Max. Pressure:160 PSI
Specs
–
| Application: | Hot Water Boilers |
|---|---|
| Switch: | SPDT |
| Max Pressure (PSI): | 160 |
| Type: | Electronic |
| Reset Type: | Automatic |
| Power Consumption: | 2 VA |
| Voltage: | 24V |
