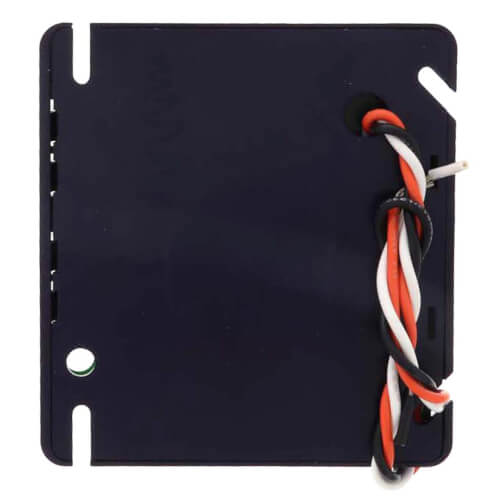

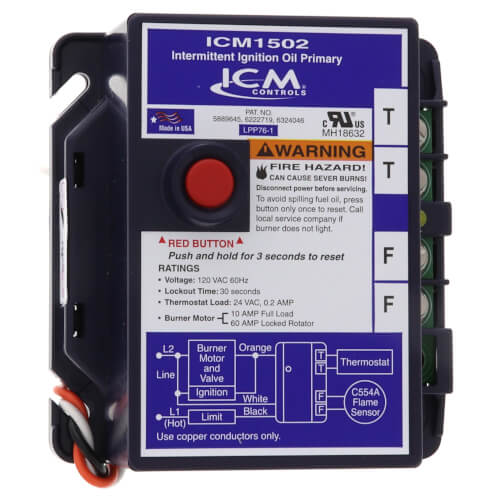

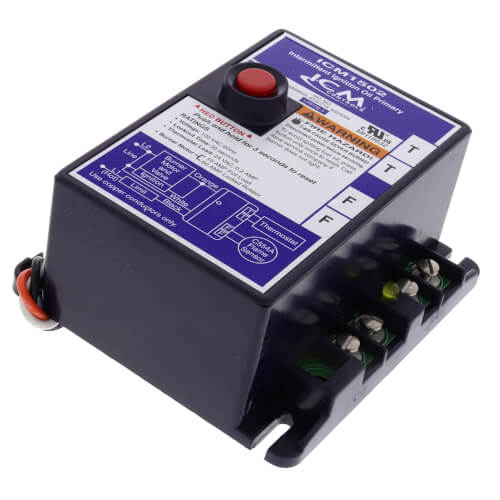

ICM1502 Intermittent Ignition Oil Primary Control (Safety Timing, 30 Seconds)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$112.81 each
In Stock
Get 5 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Intermittent
4-3/8"
2-1/2" Depth
Description
–
ICM's 1500 Series Intermittent Ignition Oil Primary Controls come standard with patented energy transfer technology that ensures the fuel valve and pump will only be energized if the control is functioning properly. Features a solid state flame sensing circuit, LED to indicate system lockout, an enclosed safety switch and an external reset button. Direct replacement for popular competitive models.
Product Features
Product Features
- Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat
- Solid state flame sensing circuit
- LED on terminal strip indicates system lockout
- Enclosed safety switch with external reset button
- Mounts on standard 4 x 4 in. junction box; select models may be mounted directly on burner housing
- C554A Cadmium Sulfide Flame Detector and 24 VAC thermostat required
- Direct replacement for popular competitive models
- Replaces Honeywell R8184G4074, R8184G1179, R8184G1302, R8184G4033
Specs
–
| Ignition Type: | Intermittent |
|---|---|
| Safety Timing: | 30 Seconds |
| - Contacts (Full Load): | 7.4A @ 120 VAC; 3.7A @ 240 VAC |
| - Contacts (Locked Rotor): | 44.4A @ 120 VAC; 22.2A @ 240 VAC |
| Mounting Bracket: | Standard 4x4 J-Box or direct mounting on burner housing |
| Height: | 4-3/8" |
| Width: | 4 1/8" |
| Depth (Inches): | 2-1/2" |
| Temperature Range: | -30° to 130°F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4 out of 3 reviews
100% would recommend this product
5 star
33%
4 star
33%
3 star
33%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
Not bad
Had a bad thermostat and primary. There is a delay when calling for heat with this primary. Coupled with bad thermostat was giving me fits. I switched it with one on another heater with good thermostat worked fine. Not use to delay when calling for heat. Not long but can make you think it's defective.
Horsehead
NJ
9 years ago
Verified Buyer
Was this review helpful to you?
best product
Fast service. Got here quick.product work perfectly
Reggie
06415
9 years ago
Verified Buyer
Was this review helpful to you?
happy to be warm again
finally have it installed on the furnace. thank you for your prompt service. the delay of installation is not due to your order processing.
Abby
Mass City, MI
13 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Does the primary control shut off the ignition transformer after a flame is detected so there is not a continuous ark across electrodes.
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe igniter is constantly on after the flame signal is sensed.
