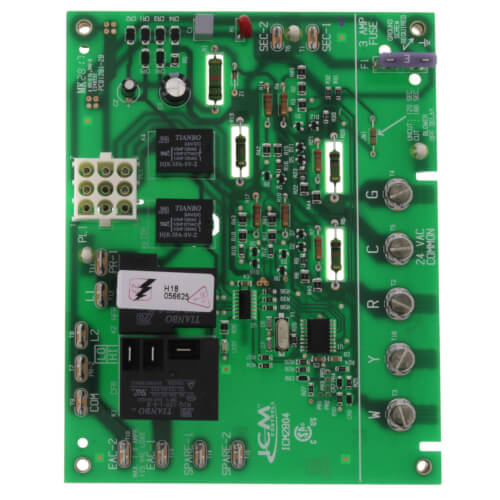

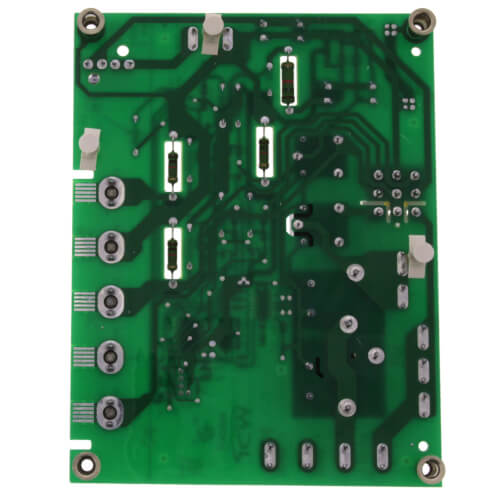

ICM2804 Furnace Control Board
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
ICM2804 has been discontinued
Discontinued November 29, 2022
This product was discontinued by the manufacturer.
MANUALS (2)
Description
–
Furnace Control Board - replacement for Carrier CES0110074-00/01 control boards.
Electrical:
Timing:
Electrical:
- Line Voltage Range: 98-132 VAC @ 60Hz
- Cool Blower: 20A, 2 HP, 240 VAC
- Heat: 10A, 240 VAC
- Inducer Motor: 4A FLA, 8A LRA @ 120 VAC
Timing:
- Inducer Pre-Purge Time: 1 second
- Heat Blower On Delay: 45 seconds
- Heat Blower Off Delays: 120 or 180 second
- Cool Blower On Delay: 1 second
- Cool Blower Off Delay: 1 second
Specs
–
| Product Type: | Control Board |
|---|---|
| Operating Temp Range: | -40° to 176°F |
| Humidity Range: | 5% to 95% Relative Humidity (Non-Condensing) |
| Voltage Range: | Line (98 - 132 VAC) @ 60Hz |
| Inducer Motor: | 4A, FLA-8.0 LRA @ 120 VAC |
| Cool Blower: | 20A, 2 HP, 240 VAC |
| Cool Blower ON Delay: | 1 Second |
| Cool Blower OFF Delay: | 1 Second |
| Heat Blower: | 10A, 240 VAC |
| Heat Blower ON Delay: | 45 Seconds |
| Heat Blower OFF Delay: | 120 or 180 Seconds |
