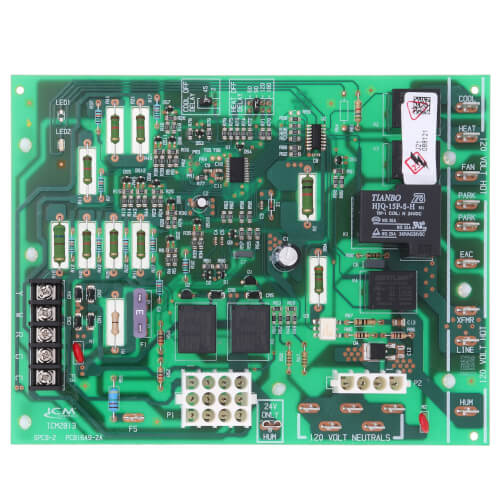

ICM2813 Furnace Control Board
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$151.92 each
In Stock
Get 6 Fri, May 16
Order by 6PM, receive Friday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
The ICM2813 is a form, fit, and functional replacement for the Lennox SureLight(r) Series Boards and White Rodgers equivalent. The ICM2813 automated gas ignition control board monitors the ignition sequence including the inducer, pressure switch, hot surface igniter, gas valve, flame sense, and circulating blower while maintaining full safety circuit monitoring including the high limit switch, roll out switch and auxiliary limit switch circuits. Onboard diagnostics will indicate when a fault condition exists.
Product Features:
Product Specifications:
Product Features:
- Controls the gas valve, inducer draft motor, circulating blower and hot surface ignitor
- Monitors system pressure and limit switches
- Microprocessor based precision
- Diagnostic LEDs aid in testing and trouble shooting
Product Specifications:
- Electrical Rating @ 77°F (25°C)
- Input Voltage: 18-30 VAC 50/60 Hz maximum
- Igniter Current: 2.0 amp @ 80 VAC 50/60 Hz (resistive)
- Inducer Relay: 2.2 FLA–3.5 LRA @ 120 VAC
- Blower Relay: 14.5 FLA–25.0 LRA @ 120 VAC (2spd–H/C)
- Gas Valve Relay: 1.5 amp @ 25 VAC 50/60 Hz 0.6 pf
- Operating Temp Range: -40° to 176°F (-40° to 80°C)
- Humidity Range: 5 to 95% relative humidity (non-condensing)
Specs
–
| Product Type: | Control Board |
|---|---|
| Operating Temp Range: | -40° to 176°F |
| Input Voltage: | 18-30 VAC |
| Humidity Range: | 5% to 95% Relative Humidity (Non-Condensing) |
| Heat Blower ON Delay: | 45 Seconds |
| Heat Blower OFF Delay: | 90 Seconds 60 Seconds 180 Seconds 120 Seconds |
| Cool Blower ON Delay: | 2 Seconds |
| Cool Blower OFF Delay: | 2 Seconds 45 Seconds |
