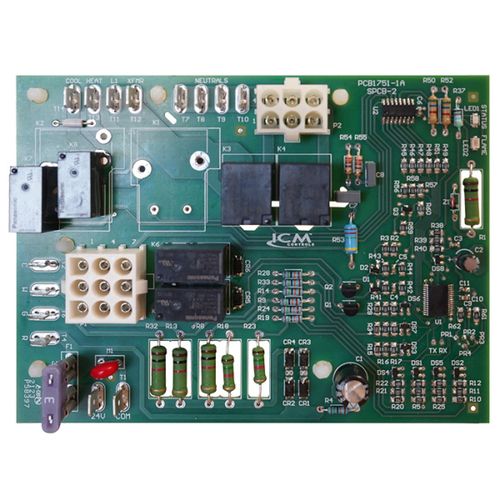

ICM2820 Furnace Control Board
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$73.52 each
In Stock
Get 16 Thu, Jul 10
Order by today, receive Thursday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
18/30 VAC
Description
–
The ICM2820 furnace control board will control the functions of the furnace including the induced draft blower, circulator blower, gas valve, ignitor, and flame sensor based on inputs from a thermostat and various sensors in the furnace. The ICM2820 control will also detect faults and communicate the faults while in service and display the faults through its on-board LED as well as employ a timed safety lock-out when the conditions warrant.
Features:
- Controls furnace operation including the function of the induced draft blower, circulating blower, ignition sequence, gas valve, and flame sense.
- Monitors system safeties to properly lock out operation when there is a safety fault
- Detects and communicates faults using diagnostic LED to aid troubleshooting.
- Form, fit ,and functional replacement for the OEM boards listed as a cross.
- ECM blower output
Specifications:
- Input: 120 VAC, 60 Hz
- Control Voltage: 18-30 VAC
- Inducer: 1/100 HP (0.69A) @ 120V, 60 Hz
- HSI: 6.0A @ 120 VAC, 50/60 Hz (resistive)
- Gas Valve: 0.5A @ 24 VAC, 50/60 Hz (resistive)
Specs
–
| Voltage: | 18/30 VAC |
|---|---|
| Product Type: | Furnace Control Control Board |
