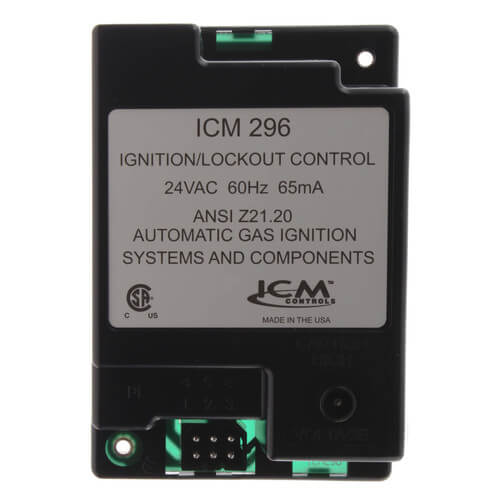

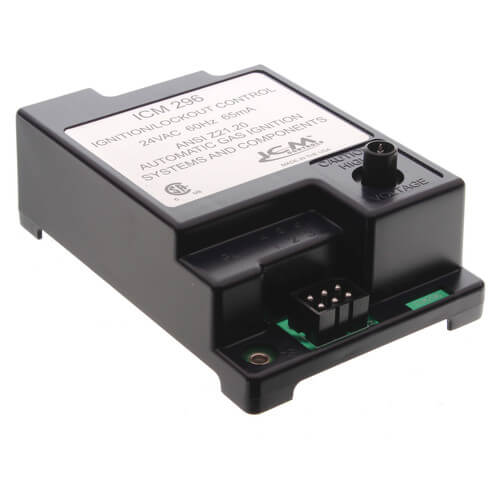

ICM296 Spark Ignition Control Module
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
ICM296 has been discontinued
Discontinued December 1, 2022
This product was discontinued by the manufacturer.
MANUALS (2)
Description
–
Spark Ignition Control Module - replacement for Carrier LH33WZ510.
Specifications:
Specifications:
- Control Voltage: Line 24V (18-30 VAC), 50/60Hz
- Spark Frequency: 60Hz
- Prepurge: None
- Lockout: 5-6 minutes
- Retry: None
- Relay Contact Rating: 1 amp @ 24 VAC
- Trial for Ignition: 90 seconds
- Flame Failure Response Time: 0.8 seconds max
Specs
–
| Product Type: | Control Board |
|---|---|
| Control Voltage: | Line 24V (18-30 VAC) 50-60Hz |
| Relative Humidity: | 0% to 95% non condensing |
| Pre-Purge Time: | None |
| Operating Temp Range: | -40° to 176°F |
| Trial For Ignition: | 90 Seconds |
| Lockout Timing: | 5-6 Minutes |
