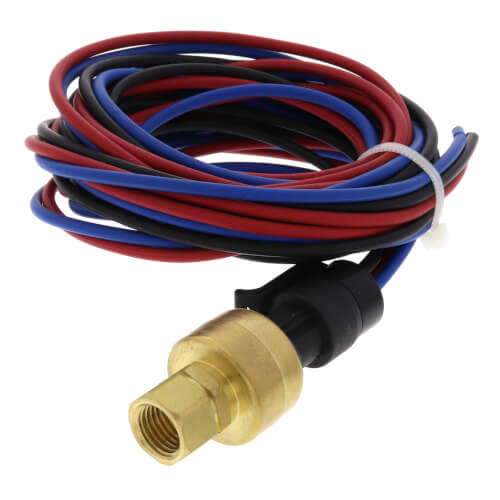

ICM380 Pressure Transducer
Hover image to zoom
ICM380 Pressure Transducer
Hover image to zoom
ICM380 has been discontinued
Discontinued February 14, 2024
This product was discontinued by the manufacturer.
Suggested Alternative:
ICM387 Pressure Transducer
SKU:
ICM387
(0)
In Stock
In Stock
Get 6 Wed, Feb 28
Fast Track Logo
Order by today, receive 6 by Wednesday
VIEW ALTERNATIVE
VIEW ALTERNATIVE

Product Highlights

Length icon
72 inches

Description

The ICM380 pressure transducer provides proven performance at a competitive price.
  • Optional pressure transducer for ICM336 and ICM337 three-phase head pressure controls
  • Optional pressure transducer for ICM330 single-phase head pressure control
Features
  • Ceramic capacitive sensor
  • Durable, compact design
  • Accurate performance over wide temperatures
  • Over-voltage and short circuit protected
  • Brass connector
  • Sealed gauge (neoprene seal)
  • 1/4" SAE female flare with 6ft long Schraeder deflator
Applications
  • Discharge and suction pressure monitoring
  • Sub-cooling and superheat calculations
  • Compressor oil pressure monitoring
  • Condenser fan control
  • Compressor staging and unloading
  • Electronic expansion valve control
  • Remote systems diagnostics and trending
Mode of Operation - The standard design is ideal for demanding HVAC and refrigeration applications where long-term reliability is a must. The transducer is designed to operate with a 5Vdc supply, and to provide a robust 0 to 5Vdc output. The output is ratiometric to supply voltage, allowing the user to maintain accuracy with variation in the supply voltage. The electrical interface is a rugged industry accepted connector. The brass pressure connection has multiple threads. This device maintains accuracy through a wide temperature range.

Specs

Product Type:

Pressure Transducer

Length:

72 inches

Pressure Range:

0 to 500 psi

Operating Temp Range:

-40°C to +135°C

Supply Voltage:

4.5 to 5.5 Vdc

Output Voltage:

0.5 to 4.5 Vdc typical

Supply Current:

8 mA (max. @ 5.5 Vdc w/ no load)

Output Current:

2.5 mA (max. sink or source)

Output Load:

10K ohms typical

Output Response Time:

10 ms

Overvoltage Protection:

16 Vdc

Reverse Voltage:

14 Vdc

Short Circuit Protected:

Yes
