1/2" PEX Crimp Ice Machine Outlet Box w/ 1/4 Turn Water Hammer Arrestor Valve
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Product Highlights
Description

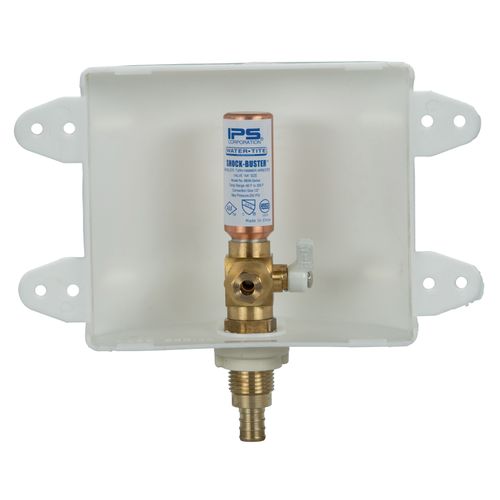

The Water-Tite Square Ice Maker Outlet Box features a special contoured design that offers quick and easy valve access. Its one-piece box-and-flange construction delivers ideal mounting stability, requiring no additional support framing. This outlet box includes one pre-installed lead-free brass valve that has an integrated hammer arrester, which absorbs sudden pressure changes to reduce stress on the plumbing system, providing continuous and maintenance-free protection against water hammer. The Water-Tite Square Ice Maker Outlet Box comes with a snap-on faceplate that measures 8-1/4 inches wide by 7-5/16 high and is able to accommodate up to 3/4-inch drywall. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.
Feature:
- Box 5 3/4" x 4 7/8" x 3 1/2"
- Frame 8 1/4" x 7 5/16"
- Contour Box Design Allows Easy Valve Access
- One-Piece Box and Flange Design Needs No Additional Support Framing and Labor
- Snap-On Frame Accommodates up to 3/4" Drywall
- California Residents: WARNING - www.P65warnings.ca.gov
Specs
| Features: | 1/4 Turn Ball Valves |
|---|---|
| Application: | Ice Maker |
| Material: | Plastic |
| Lead Free: | Yes |
| Inlet Size: | 1/2" |
| Inlet Type: | PEX Crimp |
| Product Type: | Ice Maker Outlet Box |
