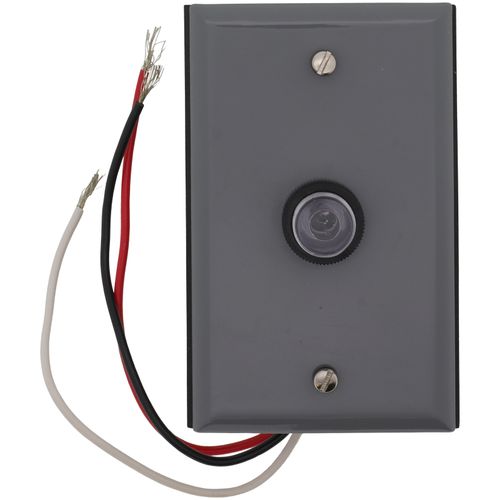

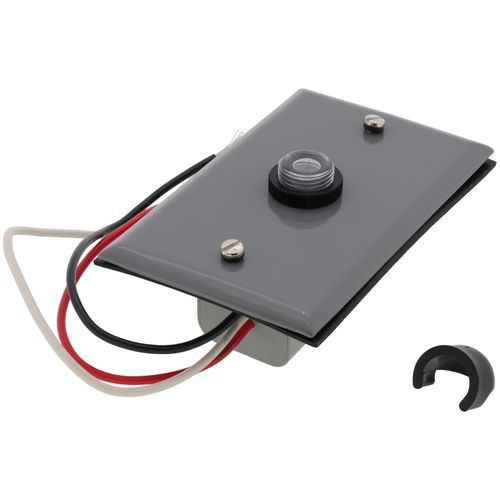

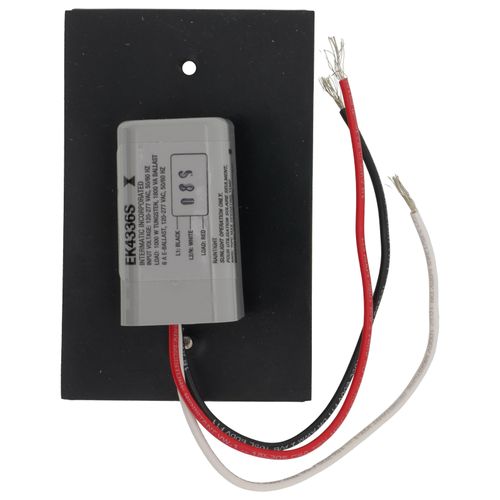

NightFox Electronic Photocontrol, Wall Mount Front Lens (120-277V)

EK4336S | Wall Mount Electronic Photocontrol, 120-277V

NightFox electronic photocontrols permanently install on standard single-gang in-wall boxes. Standard wall plate included. Ideal for LED fixtures with long-life expectations.

Features:

• Non-drift silicon light sensor with IR filter
• DC relay with zero-crossing circuitry for extended life
• Conformal coated PCB
• 15-year design life
• Exceeds 10,000 ON/OFF switching cycles
• Fail ON mode
• Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
• 255 J MOV surge protection element
• Fits standard single-gang in-wall electrical boxes
• Wall Plate is included
• #18 AWG wire leadsG5:I5

Applications:

• Parking Lot Lighting
• Landscape Lighting
• Exterior Lighting
• Street Lighting
• Pedestrian Pathway Lighting

Specifications:

• Usage Environments Outdoor
• Photocontrol Type Electronic
• Expected Lifetime (Years) 15
• Expected Lifetime (Operations) 10000
• Application Compatibilities LED; Incandescent; HID
• Photocontrol Style: In-Wall
• Photocontrol Sensor Location Front
• Sensor Time Delay Instant ON; 2 sec to 5 sec OFF
• Photocell Type Silicon Diode
• Photo Control Switch Type Relay
• Fail Mode ON
• Activation On 1.5 fc
• Activation Off 4.5 fc
• Wire Lead Length (in) 9
• Wire Size Max #18 AWG
• Cover Color Gray
• Housing Material Polycarbonate
• Tungsten Range(s) 1000 W
• Ballast (Fluorescent) 1800 VA
• Ballast (Fluorescent) Range(s) 1800 VA
• Electronic Ballast Range(s) 6 A, 120-277 VAC, 50/60 Hz
• Wiring Option Wire leads
• Input Voltage Range(s) 120-277 VAC, 50/60 Hz
• Surge Protection 255 J MOV, 5,000 A Surge
• UL Certification UL
• CSA Certification CSA
• Other Certifications and Compatibilities CA Title 20; Ansi C136.24
• RoHS Certification Yes
