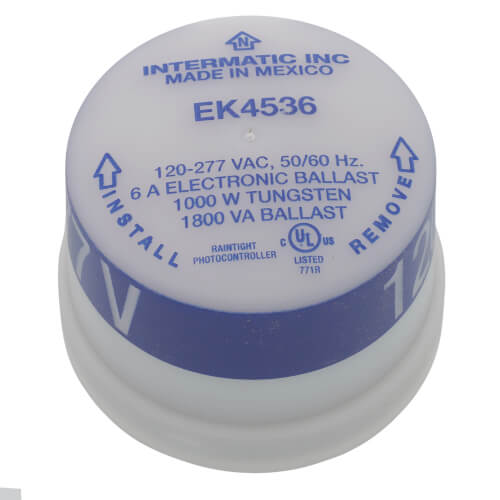

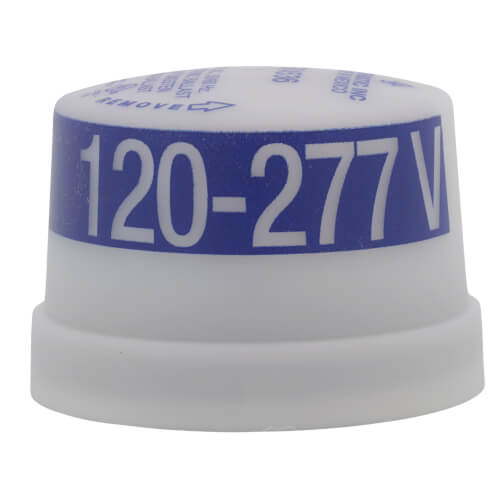

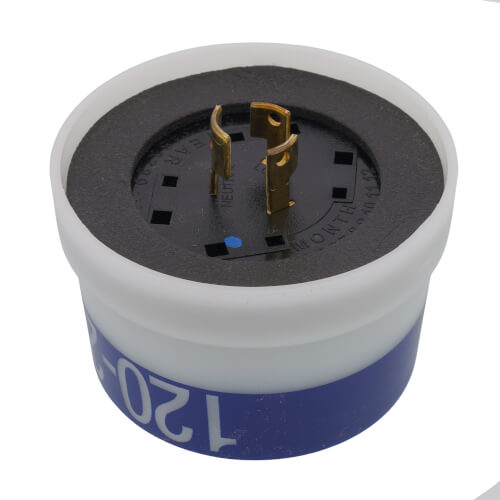

NightFox Electronic Photocontrol, Select Grade Locking Type (120-277V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$32.61 each
In Stock
Get 7 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
120-277V
Polypropylene
Description
–
EK4536 | Select Grade Locking Type Electronic Photocontrol, 120-277V
Designed to meet a 15-year service life, this photocontrol is LED-compatible and backed by an 8-year warranty.
Features:
Applications:
Specifications:
Designed to meet a 15-year service life, this photocontrol is LED-compatible and backed by an 8-year warranty.
Features:
- Non-drift silicon light sensor with IR filter
- DC relay with zero-crossing circuitry for extended life
- All components meet 15-year life expectancy
- Conformal coated PCB
- Exceeds 10,000 ON/OFF switching cycles
- Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
- 510 J MOV surge protection
Applications:
- Parking Lot Lighting
- Landscape Lighting
- Exterior Lighting
- Street Lighting
- Pedestrian Pathway Lighting
Specifications:
- Usage Environments Outdoor
- Photocontrol Type Electronic
- Expected Lifetime (Years) 15
- Expected Lifetime (Operations) 10000
- Application Compatibilities LED; Incandescent; HID
- Photocontrol Style: Locking Type
- Photocontrol Sensor Location Side
- Sensor Time Delay Instant ON; 2 sec to 5 sec OFF
- Photocell Type Silicon Diode
- Photo Control Switch Type Relay
- Fail Mode ON
- Activation On 1.5 fc
- Activation Off 2.25 fc
- Cover Color White with Blue Band
- Housing Material Polypropylene
- Magnetic Ballast Range(s) 1800 VA
- Tungsten Range(s) 1000 W
- Electronic Ballast Range(s) 6 A, 120-277 VAC, 50/60 Hz
- Surge Protection 510 J MOV
- UL Certification cULus
- Other Certifications and Compatibilities CA Title 20; Ansi C136.10
- RoHS Certification Yes
Specs
–
| Product Type: | Photocontrol |
|---|---|
| Type: | Electronic |
| Application: | Outdoor |
| Voltage: | 120-277V |
| Material: | Polypropylene |
