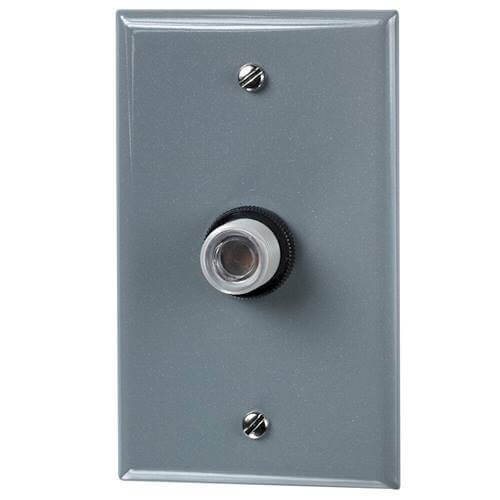

Thermal Photocontrol, Wall Mount Front Lens (120V)

K4321C | Wall Mount Thermal Photocontrol, 120V

These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting.

Features:

• These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting
• K4321C includes weatherproof wall plate and neoprene gask

Applications:

• Parking Lot Lighting
• Landscape Lighting
• Exterior Lighting
• Pedestrian Pathway Lighting
• Street Lighting

Specifications:

• Usage Environments Outdoor
• Photocontrol Type Thermal
• Expected Lifetime (Years) 5
• Expected Lifetime (Operations) 3650
• Application Compatibilities HID; Fluorescent; Incandescent
• Photocontrol Style: In-Wall
• Photocontrol Sensor Location: Front
• Sensor Time Delay: 30 sec to 90 sec
• Photocell Type: Cadmium Sulfide
• Photo Control Switch Type: Mechanical Bimetal
• Fail Mode: ON
• Activation On: 1 to 5 fc
• Activation Off: 3 to 15 fc
• Wire Lead Length (in): 9
• Wire Size Max: #18 AWG
• Cover Color: Gray
• Housing Material: Polycarbonate
• Magnetic Ballast Range(s): 8.3 A, 1000 VA
• Tungsten Range(s): 15 A, 1800 W
• Wiring Option: Wire leads
• Input Voltage Range(s) 120 VAC, 50/60 Hz
• Temperature (operation): -40°C..70°C
• UL Certification UL
• CSA Certification cCSAus
• Other Certifications and Compatibilities: CA Title 20
• California Proposition 65 DEHP
