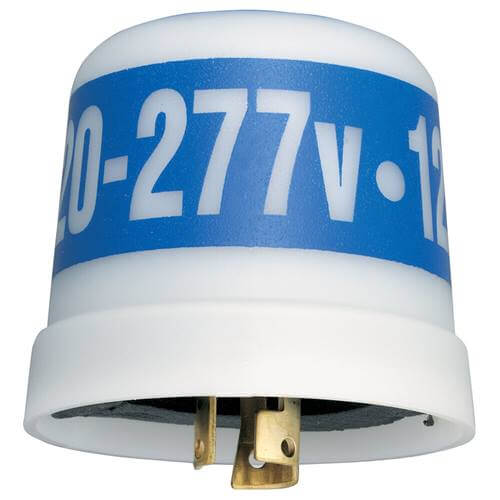

Thermal Photocontrol, Locking Type Side Lens (120-277V)

LC4536C | Locking Type Thermal Photocontrol, 120-277V

These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on street light fixtures. Locking type design facilitates fast installation and replacement of photocontrol.

Features:

• Mechanical bimetal switch with Cadmium Sulfide photocell
• Integral high impact thermoplastic housing
• Locking type plug for quick installation and changeover
• Delay feature prevents unwanted OFF switching
• Complies with ANSI C136.10 standard
• Tested to 3,650 ON/OFF cycles

Applications:

• Exterior Lighting
• Street Lighting
• Parking Lot
• Pedestrian Pathway Lighting
• Landscape Lighting

Specifications:

• Usage Environments Outdoor
• Photocontrol Type Thermal
• Expected Lifetime (Years) 5
• Expected Lifetime (Operations) 3650
• Application Compatibilities HID; Incandescent
• Photocontrol Style Locking type
• Photocontrol Sensor Location Side
• Sensor Time Delay 30 sec to 90 sec
• Photocell Type Cadmium Sulfide
• Photo Control Switch Type Mechanical Bimetal
• Fail Mode ON
• Activation On 5 fc
• Activation Off 15 fc
• Cover Color: White with Blue Band
• Housing Material: Polypropylene
• Magnetic Ballast Range(s) 8.3 A, 1000-2300 VA
• Tungsten Range(s) 15 A, 1800-4155 W
• Input Voltage Range(s) 120-277 VAC, 50/60 Hz
• Temperature (operation) -40°C..70°C
• UL Certification UL
• CSA Certification cCSAus
• Other Certifications and Compatibilities CA Title 20; Ansi C136.10
• California Proposition 65 None
