System 450 Relay Output Expansion Module w/ SPDT Line-Voltage Output Relay
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$105.13 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
This item replaces: C450SBN-1C, C450SBN3C, C450SBN-3C
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
0 PSI
750 MAX PSI
Description
–

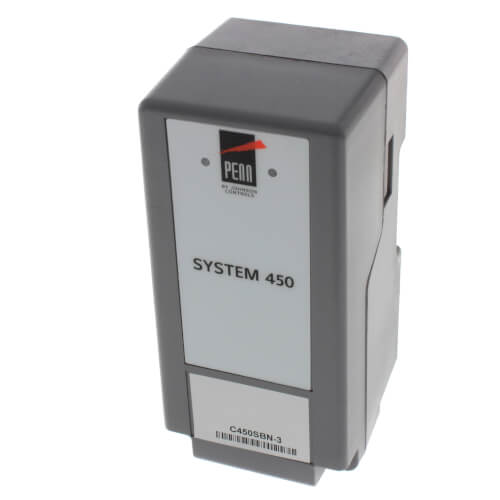

Note: Image displayed is of the C450SBN-3C model.
System 450 Relay Output Expansion Module w/ SPDT Line-Voltage Output Relay
Specifications:
System 450 Relay Output Expansion Module w/ SPDT Line-Voltage Output Relay
Specifications:
- Note: A System 450 control module or module assembly can use an internal or an external supply power source, but must not be connected to both simultaneously.
- Power consumption: 0.8 VA maximum
- Internal Supply Power: C450YNN-1C Power Supply Module
- External Supply Power: 24 VAC (20–30 VAC) Safety Extra-Low Voltage (SELV) (Europe), Class 2 (North America), 50/60 Hz, 10 VA minimum
- Ambient Operating Temperature: -40 to 150°F
- Humidity: Up to 95% RH non-condensing; Maximum Dew Point 85°F
- Control construction: Independently mounted control, surface mounted with Lexan 950 enclosure suitable for DIN rail mounting or direct mounting to a hard, even surface.
- Dimensions (H x W x D): 5.00 x 2.38 x 2.38 in.
- Weight: 0.38 lb
- Compliance (United States): UL 60730-1, File E27734; FCC Compliant to CFR47, Part 15, Subpart B,Class B
Specs
–
| Output: | SPDT |
|---|---|
| Action: | SPDT |
| Features: | Four-Button Touch Pad |
| Display: | LCD |
| Product Type: | Control Module |
| Min Pressure (PSI): | 0 |
| Max Pressure (PSI): | 750 |
