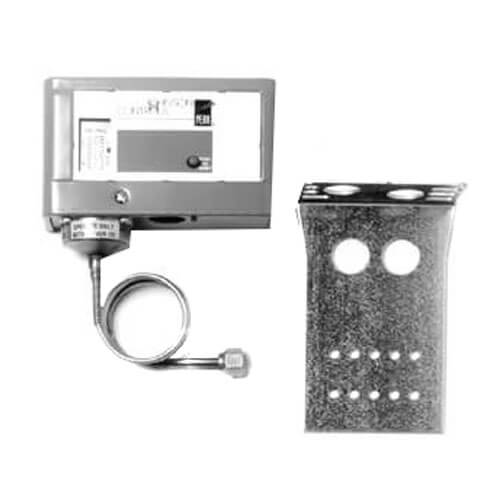

P29 Low Pressure Control w/ Time Delay (36" Cap)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$353.29 each
In Stock
Get 1 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
SPST
120v, 240v
Description
–
P29 Low Pressure Control w/ Time Delay (36" Cap)
Time Delay Shutdown Range, "Heater On": 20" Hg Vacuum to 100 PSIG
(-70 to 700 kPa)
The P29 combines a pressure sensing mechanism with a time delay. A drop in pressure energizes the time delay relay which opens a contact after a predetermined time period.
Product Features:
Time Delay Shutdown Range, "Heater On": 20" Hg Vacuum to 100 PSIG
(-70 to 700 kPa)
The P29 combines a pressure sensing mechanism with a time delay. A drop in pressure energizes the time delay relay which opens a contact after a predetermined time period.
Product Features:
- Heavy duty low profile pressure elements withstand excessively high overrun pressure that may be encountered in system testing.
- Time delay relay incorporates trip-free manual reset.
- The timing mechanism (time delay relay and terminal board) may be easily removed and replaced in the field.
- Ambient compensation minimizes the effect of temperature variations at the control location.
- Simple, single pointer scale indicates cutout pressure.
- Enclosed pressure actuated contacts.
- Single unit mounting and wiring saves installation time and material.
Specs
–
| Product Type: | Low Pressure |
|---|---|
| Switch Action: | SPST |
| Max. Working Pressure: | 250 PSI |
| Features: | Manual Reset |
| Voltage: | 120v 240v |
