Description

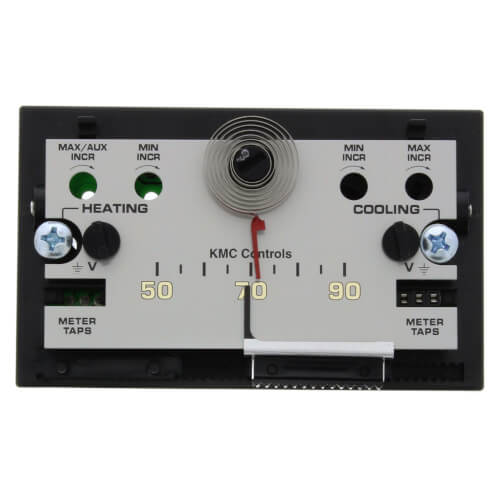

The scale plate assembly and the cover are not included with the thermostat model base and must be ordered separately or as part of a (-10) value package containing the most frequently ordered accessories. Adding -10 to the thermostat model (e.g., CTE-5101-10) orders a “package.” Packages contain one of each of the following models and accessories:
  • CTE-5100 series thermostat base
  • HPO-0060-10 horizontal scale plate, degrees F
  • HPO-1511 light almond full window ABS thermostat cover
  • HMO-5030 light almond backplate kit with matching decorative plate
  • HPO-1320 label strip

Main Thermostat Description:

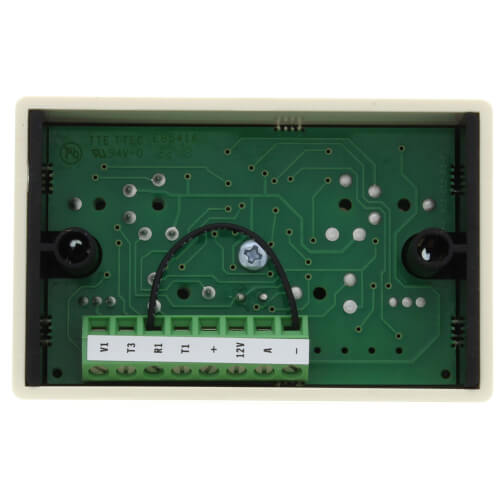

The CTE-5100 Electronic Room Thermostat series is designed for use with the CSP-5001/5002 Flow Controller-Actuator and/or the REE-1000/4000 series auxiliary relays. Other high impedance (10K ohms or higher) controls, such as MEP series actuators and VEB series valves requiring a 0 to 10 VDC control circuit, may be controlled via any of the CTE-5100 series thermostats. The CTE-5100 series thermostats have both limited and non-limited outputs. The limited output is used to provide adjustable minimum and maximum limits to a CSP-5001/5002 or impose electronic limits to a proportional actuator or valve.

Models are available for cooling, heating, cooling with reheat, cooling/heating changeover, day/night, or night/day applications. Temperature averaging and/or overrides are also available.

All thermostats require a scale plate assembly and cover, which may be ordered separately or as part of a value package containing the most frequently ordered accessories (see the Accessories and Value Packages sections). Thermostat and accessories styling feature the setpoint indicator and/or thermometer to be visible or concealed, setpoint adjustment locked or restricted, vertical or horizontal mounting, and attractive color finishes in plastic or metal.

Features:
  • Available for cooling, heating, cooling w/reheat, cooling/heating changeover, day/night, or night/day applications
  • Single or dual setpoint models
  • Outputs w/ adjustable min./max. limits or no limits
  • Visible or hidden setpoint indicator
Read more
Manuals (2)
Specs
Product Type:
Thermostat
Max Temp (F):
120°F
Min Temp (F):
40°F
Output:
0 to 10 VDC
Color:
Black
Material:
Plastic
Action:
Direct Acting
Enclosure Type:
Flame Retardant Plastic
Setpoint:
Single
×
