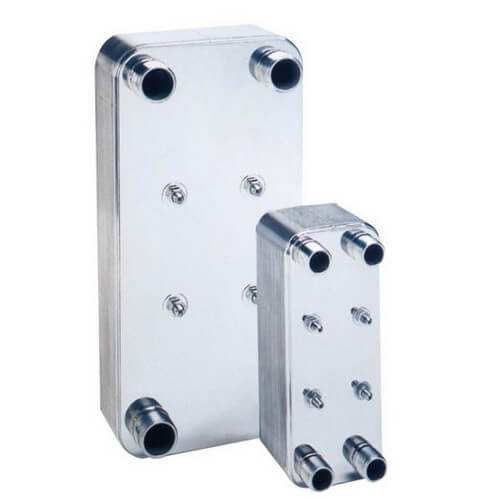

16 Plate, 1" Thread, 20 GPM Swimming Pool Heat Exchanger (5" x 12")

Brand:
Kelvion
SKU:
GNS400H-16-XCR
Rating:
(0)
Q&A:
(0)
16 Plate, 1" Thread, 20 GPM Swimming Pool Heat Exchanger (5" x 12")
Hover image to zoom
$1,344.61 each
Backorder
Backorder
Get it Wed, Mar 1 - Wed, Mar 8
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
Height icon
12-1/5"
Depth (Inches) icon
1-7/10" Depth
Max Pressure (PSI) icon
150 PSI
Thread Type icon
Male Thread Type
Min Temp (F) icon
-425°F Min Temp
Temperature Range (F) icon
-425°F - 350°F
Description
Whenever the resistance of copper is not enough, nickel as brazing material is chosen. The units of the GNS-Series offer all the advantages of a brazed plate heat exchanger, but they are essentially more stable against corrosive media such as ammonia, deionised water, sulphides and sulphates. But not every nickel-brazing is the same: only around 75% is made of pure nickel, the remaining 25% is our secret – and your benefit. Also units of the GNS-series have the proven technical features like Safety Chamber, Delta Injection and Full Flow System available. Thus, the products of the GNS-Series serve with its wide range of applications up to 200°C/392°F and 16 bar/232 psi the demands of the market.
Specs
Width:

4-9/10"

Height:

12-1/5"

Flow Rate (GPM):

20

Application:

Heating

Depth (Inches):

1-7/10"

Max Pressure (PSI):

150

Type:

Swimming Pool

Thread Type:

Male

Number of Plates:

16

Brazing Material:

Nickel

Cover Plate Material:

Marine Stainless Alloy

Min Temp (F):

-425°F

Temperature Range (F):

-425°F - 350°F

Max Temp (F):

350°F

Thread Size:

1"
