9,000 BTU, R-410A, Ductless Single Zone Air Conditioner/Inverter Heat Pump Package
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (1)
Product Highlights
Description
This R410A unit is no longer manufactured as per the AIM Act of 2020. While replacement parts are available for repairs, a new unit will require replacing the entire system to support the new A2L R32 refrigerant.
Please visit our Mini Split Air Conditioners for system selection or reach out to Customer Care Team Contact Us for assistance.

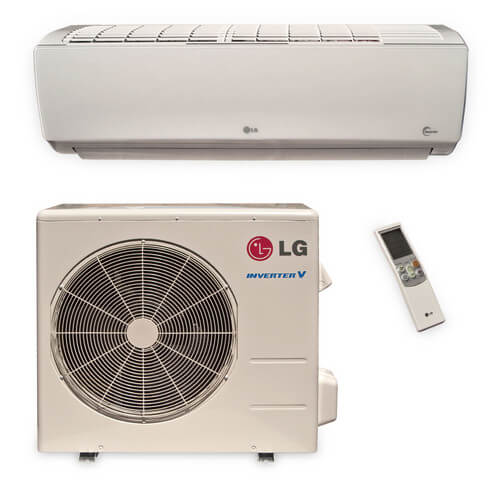

- (1) LSN091HSV:

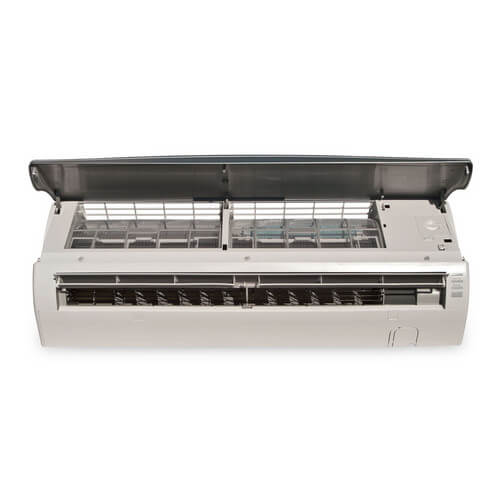

- Wall unit
- Installation plates & hardware
- Remote control, batteries, holder and holder hardware
- Installation manual

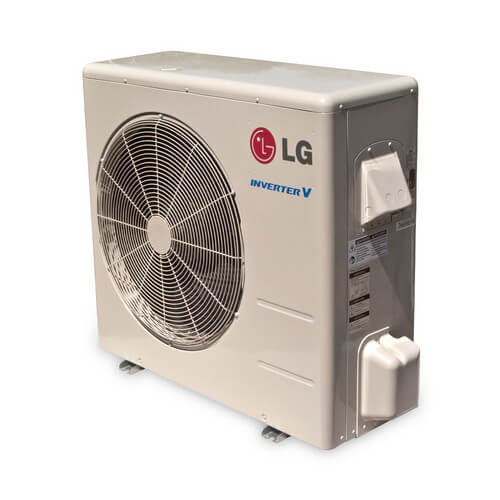

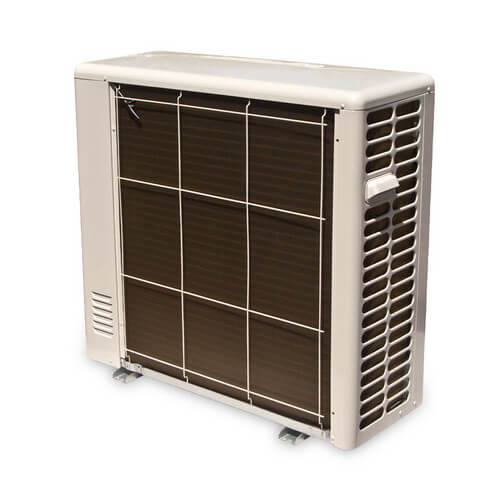

- Exterior unit
- Exterior unit has sufficient refrigerant for charging indoor coil and a 41' line set (line set not included).
LG Mini-Split, Duct-Free Air Conditioning Installation & Warranty Info
We recommend the installation of all LG Ductless Split Systems to be done by a licensed, trained & qualified HVAC technician with the proper knowledge and background. A trained technician will be able to judge the best location for the air handling (evaporator) unit and also the correct size for the area it has to cool.
Should you experience an issue during the installation or the initial startup of the unit please do not contact the manufacturer. You should have the technician that installed the units contact us or the manufacturer. LG cannot accept any service or warranty calls from anybody but a licensed HVAC technician. We have a full technical support team available to help you throughout the installation process should the need arise.
Neither we or LG Electronics U.S.A. can be held liable for improper installation and operation of any LG air conditioning product purchased from our company. Should a warranty issue arise where parts will need to be replaced, an installation receipt will be required along with your sales receipt. Failure to provide a receipt or invoice may result in the warranty not being honored.
Note: Warranties on mini split air conditioners only include parts and do not include labor. The licensed HVAC Technician who installs your air conditioner should always provide you with a labor warranty (preferably for a full year to compliment the manufacturers' parts warranty).
Specs
| Max. Pipe Length (ft.): | 65' |
|---|---|
| Max. Elevation (ft.): | 32' |
| Application: | Cooling |
| Cooling Capacity (BTU): | 9000 |
| Heating Capacity (BTU): | 10800 |
| Number of Zones: | 1 |
| Energy Star Rated: | Yes |
| EER: | 13.3 |
| SEER: | 20 |
| Dehumidification (Pts/Hr): | 2.6 |
| Refrigerant Type: | R-410A |
| Fan Speeds: | 7/Auto/Chaos |
| Modes: | Dehumidification Auto Sleep Fan Cooling Heating |
| Air Circulation (CFM H/M/L): | 350/280/210 |
| Outdoor Voltage: | 230/208-60-1 |
| Indoor Voltage: | 230/208-60-1 |
| Outdoor dB(A): | 45 |
| Indoor dB(A): | 38/33/24/19 |
| Liquid Line: | 1/4" |
| Suction Line: | 3/8" |
| Outdoor Dimensions (H x W x D): | 21-7/16" x 30-5/16" x 11-5/16" |
| Indoor Dimensions (H x W x D): | 11-1/4" x 34-13/16" x 8-1/6" |
| Indoor Weight: | 24 lbs |
| Outdoor Weight: | 77.2 lbs |
| Thermostat Range (Cooling/Heating): | 64°-86°F/60°-86°F |
| Warranty: | 5 Year Compressor/2 Year Parts |
Questions?
Product Q&A
1 QuestionQ: Which install kit goes with the LG SKU LS 091HSV Mini-Split Duct HVAC package ? none of instal kits SKU's match up ? dm
Asked by Doug 14 years ago
Add your answer
Verified Reply- PexSupply StaffWe don't currently offer an installation kit for that system, but you can buy all its component parts. The unit requires a 1/4" x 3/8" line-set. You can use E9612 wire for the electrical connections, and a UC1636-2 to mount the outdoor unit .
