24,400 BTU, R-410A, Ductless Single Zone Mini-Split Heat Pump & Air Conditioner

This R410A unit is no longer manufactured as per the AIM Act of 2020. While replacement parts are available for repairs, a new unit will require replacing the entire system to support the new A2L R32 refrigerant.

Please visit our Mini Split Air Conditioners for system selection or reach out to Customer Care Team Contact Us for assistance.

Mini-Split Standard systems utilize duct-free technology in a streamlined, low profile design. LG's Mini-Split Standard air conditioners are easy to install, efficient and cost effective.

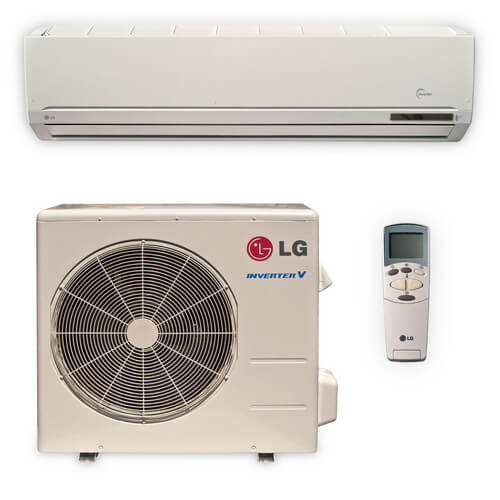

**Includes LSN246HV Indoor Model & LSU246HV Outdoor Model

Features

• R-410A Refrigerant
• Plasma air purifying system
• Gold Fin Anti-corrosion
• Dehumidifying mode
• Chaos Swing
• Jet Cool
• Cooling mode
• Heating Mode
• Fan mode
• Auto operation
• Manual power switch
• Defrost Control
• Temperature display on indoor unit
• Auto sleep mode
• Auto restart
• 24-Hour on/off timer
• 4 Fan speeds
• Ultra-quiet operation
• Evaporator frost control

Interior Unit Includes:

• Wall unit
• Installation plate & hardware
• Remote control, batteries, holder & holder hardware
• Installation manual

Exterior Unit Includes

• Exterior unit
• Exterior unit has sufficient refrigerant for charging indoor coil and a 25' line set (line set not included)

Specifications

• System Model #: LS246HV
• Indoor Model #: LSN246HV

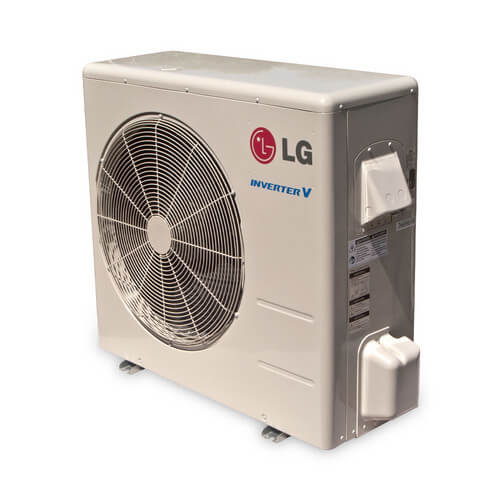

• Outdoor Model #: LSU246HV
• Performance Capacity (BTUs): 22,500
• SEER: 13
• Air Circulation (CFM H/M/L): 530/450/370
• Fan Speeds: 4/Auto/Chaos
• Dehumidification (pts/hr): 6.6
• Indoor dB(A): 46/41/38
• Outdoor dB(A): 57
• Rated Voltage Outdoor: 230/208-60-1
• Rated Voltage Indoor: 36V DC
• Indoor Dimensions W x H x D (inches): 42 15/16 x 11 13/16 x 7 1/32
• Indoor Weight (lbs.): 28.6
• Outdoor Dimensions W x H x D (inches): 34 5/16 x 31 1/2 x 12 5/8
• Outdoor Weight (lbs.): 169.6
• Thermostat Range: (F) 64-86, 60-86 (Heating)
• MEA# : 316-06-E

Refrigerant Line & Formula Specifications

• Pipe Size: Liquid - 3/8", Suction - 5/8"

• Max. Length Each Pipe: 100 ft.

• Max. Elevation: 50 ft.

• Additional Refrigerant: .22 oz/ft.

• Each system is pre-charged with enough refrigerant to charge 25 ft. of line and the interior unit.

LG Mini-Split, Duct-Free Air Conditioning Installation & Warranty Info

We recommend the installation of all LG Ductless Split Systems to be done by a licensed, trained & qualified HVAC technician with the proper knowledge and background. A trained technician will be able to judge the best location for the air handling (evaporator) unit and also the correct size for the area it has to cool.

Should you experience an issue during the installation or the initial startup of the unit please do not contact the manufacturer. You should have the technician that installed the units contact us or the manufacturer. LG cannot accept any service or warranty calls from anybody but a licensed HVAC technician. We have a full technical support team available to help you throughout the installation process should the need arise.

Neither we or LG Electronics U.S.A. can be held liable for improper installation and operation of any LG air conditioning product purchased from our company. Should a warranty issue arise where parts will need to be replaced, an installation receipt will be required along with your sales receipt. Failure to provide a receipt or invoice may result in the warranty not being honored.

Note: Warranties on mini split air conditioners only include parts and do not include labor. The licensed HVAC Technician who installs your air conditioner should always provide you with a labor warranty (preferably for a full year to compliment the manufacturers' parts warranty).
