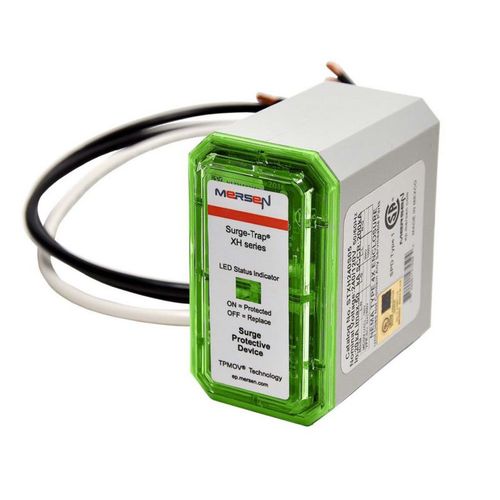

Mersen Stxh240S05, Surge-Trap Surge Protection Device (Spd), 240/120V Split Phase (3W), 19C88

Surge-Trap Surge Protection Device (SPD) The most compact of the STX series offering, the Surge-Trap Type 1 STXH meets requirements for UL1449 4th Edition and is suitable for any 120/240VAC split phase application. The STXH Series SPD features TPMOV technology inside making it the safest product available in its category. Its compact size, performance, and reliability are especially ideal for HVAC applications and direct mounting to air condition disconnect switches. 240/120V Split Phase (3W) Protection Modes: L-N, L-G Voltage Protecion Rating: L-G 1000V Voltage Protecion Rating: L-N 600V Nominal Discharge Current (In) (8/20) 20kA Designed with the industry leading Mersen TPMOV Technology Compact footprint designed to mate with AC Disconnect Switches LED status indicator (ON = Good, OFF = Replace) NEMA 4X enclosure for outdoor or indoor use Fits 1/2" knockouts with 18" leads for easy installation For use in ANSI/UL Type 1 or 2 SPD installations 3 Modes of Protection (L-N, L-L) 3-year warranty
