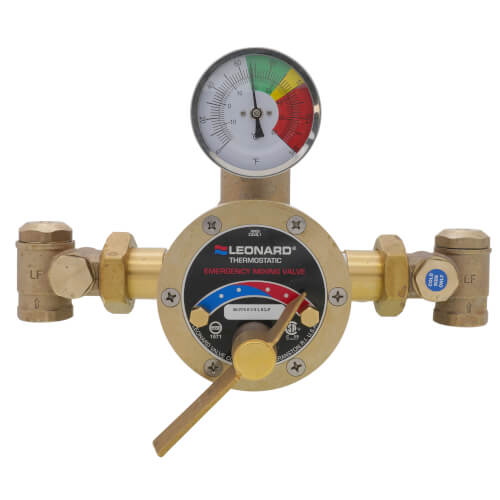

3/4" FPT Inlet x 1" Outlet Emergency Water Mixing Valve for Eye/Face Wash Units (3 to 58 GPM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,365.42 each
In Stock
Get 3 Tue, Jun 9
Order by today, receive Tuesday
Size:
3/4" x 1"
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
3/4" x 1"
ASSE 1071 Standards Met
58 MAX GPM
125 psi
Bronze
Description
–
DURA-trol solid bimetal thermostat directly linked to valve porting to control the intake of hot and cold water and compensate for supply temperature and pressure fluctuations. DURA-trol is highly responsive and cannot be damaged by extremes in temperature. Thermostatic Mixing Valve can be set to the correct temperature for the application. Locking temperature regulator to prevent accidental movement set for 85°F (29°C)
Product Features:
Product Features:
- Mixing valve will close down on failure of cold water supply
- Mixing Valve with special internal cold water bypass capable of 20 GPM (76 l/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply
- Adjustable high temperature limit stop set for 90°F (32°C)
- Full 3/4” top or bottom inlets and 1” top outlet
- Integral wall support
- Dial thermometer (range 0 to 140°F, -10 to 60°C)
- Rough bronze finish
- Union angle checkstops on inlets
- Compliance...ANSI Z358.1
- Maximum supply temperature 180 °F (82°C)
- Maximum supply pressure 125 PSI (8.6 Bar)
Specs
–
| Size: | 3/4" x 1" |
|---|---|
| Application: | Point of Use |
| Standards Met: | ASSE 1071 |
| Min Flow (GPM): | 3 |
| Max Flow (GPM): | 58 |
| Max Pressure: | 125 psi |
| Material: | Bronze |
| Lead Free: | Yes |
| Connection Method: | Threaded |
| Connection Type: | FNPT x FNPT |
