$42.97 each
In Stock
Get 5 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
50 Amps
Industrial
2 years Warranty
Description
–
Features
Specifications
- Features heavy-gauge, high-performance copper contacts
- High torque value to ensure proper connection: terminals require 75 in lbs
- Accurate, efficient wiring with terminal IDs marked

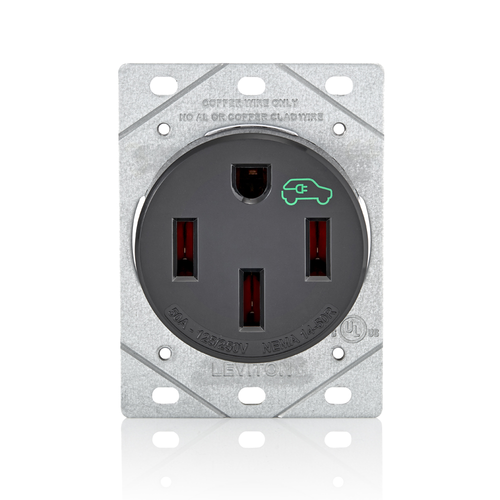

- Designed specifically for plug-in EV charging applications, Leviton's 1450R and 1450W power receptacles are built to outperform and outlast. With its robust design and performance, the 50A Heavy Duty Power Receptacle can sustain the necessary extended charge time and high frequency of insertions EV chargers require. This receptacle offers the perfect option for homeowners who prefer a plug-in application as opposed to a hardwire application and for future-focused new construction MDU projects that want to present an EV-ready environment.
- Pressure-wire terminal connections ensures full-contact with the conductors
- Built of durable, high-impact nylon
Specifications
- Grounding: Grounding
- NEMA: 14-50R
- Grade: Industrial
- Application: Home
- Torque Range: 75 in-lbs.
- cULus: cULus
- Face Material: Nylon
- Amperage: 50 A
- Terminal ID: X (Brass screw or Black screw) = Hot, Y (Brass screw or Black screw) = Hot; White (Silver screw) = Neutral; Green (Green screw) = Ground
- Product ID: Ratings are permanently marked on device
- At Rated Voltage: 3 HP
- Warranty: 2-Year Limited
- Voltage: 125/250 VAC
- RoHS Compliant: FALSE
- Strap Material: Heavy Gauge Galvanized Steel
- Wire: 4
- Wire Gauge: For use with #4, #6 or #8 AWG copper wire ONLY. May use #10 AWG solid wire for ground connection. DO NOT use with copper-clad or aluminum wires on this device.
- Device Type: Receptacle/Outlet
- Operating Temperature: -40 °C to 60 °C
- Pole: 3
- Country of Origin: China
- Flammability: Rated HB or better UL94
- Device: Flush Mounted Single Receptacle
Specs
–
| Poles: | 3 |
|---|---|
| Amperage: | 50 |
| NEMA Rating: | 14-50R |
| Product Type: | Receptacle/Outlet |
| Grade: | Industrial |
| Ground: | Grounding |
| Warranty: | 2 years |
