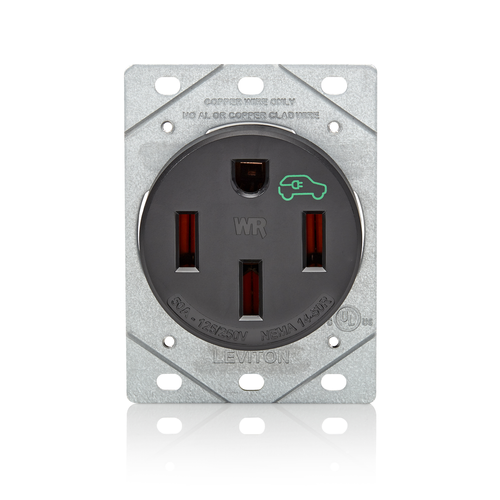

50A Ev ChaRGing Receptacle/outlet, Heavy Duty, Weather-resistant
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$60.43 each
In Stock
Get 5 Thu, Jul 9
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Industrial
2 years Warranty
50 Amps
Description
–
Features
Specifications
- Weather-resistant for outdoor applications
- Designed specifically for plug-in EV charging applications, Leviton's 1450R and 1450W power receptacles are built to outperform and outlast. With its robust design and performance, the 50A Heavy Duty Power Receptacle can sustain the necessary extended charge time and high frequency of insertions EV chargers require. This receptacle offers the perfect option for homeowners who prefer a plug-in application as opposed to a hardwire application and for future-focused new construction MDU projects that want to present an EV-ready environment.
- Built of durable, high-impact nylon
- Accurate, efficient wiring with terminal IDs marked
- Must be installed in a 2-gang outdoor box and must use code compliant weatherproof cover
- Pressure-wire terminal connections ensures full-contact with the conductors
- High torque value to ensure proper connection: terminals require 75 in lbs
- Features heavy-gauge, high-performance copper contacts
Specifications
- Grade: Industrial
- Product ID: Ratings are permanently marked on device
- RoHS Compliant: FALSE
- Warranty: 2-Year Limited
- Application: Home
- Device: Flush Mounted Single Receptacle
- Feature: Weather-Resistant
- Strap Material: Heavy Gauge Galvanized Steel
- Face Material: Nylon
- Pole: 3
- Terminal ID: X (Brass screw or Black screw) = Hot, Y (Brass screw or Black screw) = Hot; White (Silver screw) = Neutral; Green (Green screw) = Ground
- Operating Temperature: -40 °C to 60 °C
- Device Type: Receptacle/Outlet
- Wire Gauge: For use with #4, #6 or #8 AWG copper wire ONLY. May use #10 AWG solid wire for ground connection. DO NOT use with copper-clad or aluminum wires on this device.
- At Rated Voltage: 3 HP
- Grounding: Grounding
- Wire: 4
- Flammability: Rated HB or better UL94
- Torque Range: 75 in-lbs.
- cULus: cULus
- Amperage: 50 A
- Voltage: 125/250 VAC
- Country of Origin: China
Specs
–
| Grade: | Industrial |
|---|---|
| Warranty: | 2 years |
| Ground: | Grounding |
| Amperage: | 50 |
| Poles: | 3 |
| Product Type: | Receptacle/Outlet |
