Single-Pole, Commercial Grade Doorjamb Switch with Jam Box

Add convenience while saving space and hiding an unsightly switch by replacing it with one in your doorjamb. This commercial grade doorjamb remains hidden and will automatically turn on and off when you open and close your door. Perfect for a closet and other installations where light is needed only when the door is left open. With an easy two wire setup this switch is as simple to wire as a normal light switch. This is the only doorjamb switch that meets UL requirements and with the Leviton name you can be confident of its high quality.

Features:

• Only Doorjamb Switch that Meets UL Requirements
• Perfect for Closets
• Remains Hidden in the Doorjamb
• Simple 2 Wire Setup

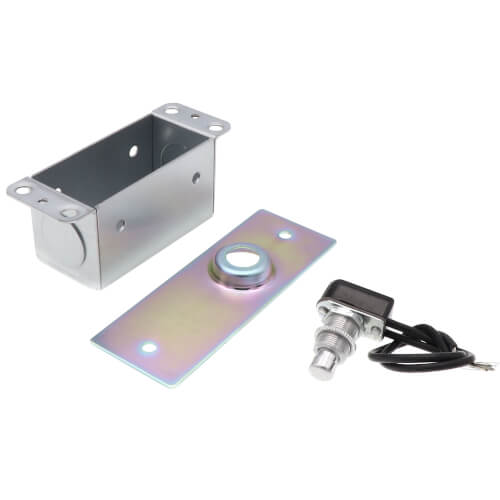

• Includes Mounting Screws and Cover Plate

Specifications:

• Voltage: 125 Volt
• Amperage: 3 Amp
• Type: Single-Pole
• Termination: 6-Inch 18-AWG TEW Leads
• Bushing Length: 15/32-32 x 18/32 Inch Long
• Certifications: CSA/ UL
• Operating Temperature: -40 C to 120 C
• Environmental: Flammability UL-94, V2 Rating

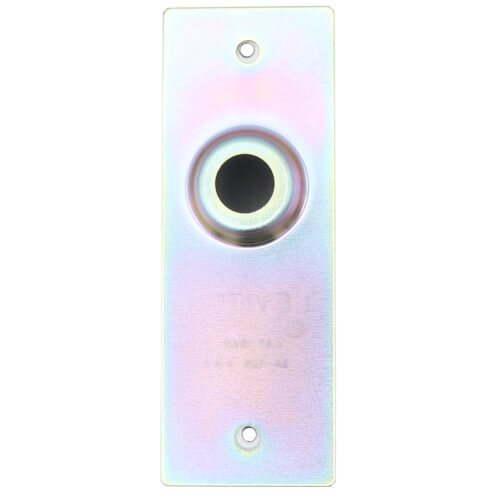

• Dimensions: Jamb Box: 2 5/8"H x 1 1/4"W x 1 7/16"D; Cover Plate: 4 1/8"H x 1 1/2"W
