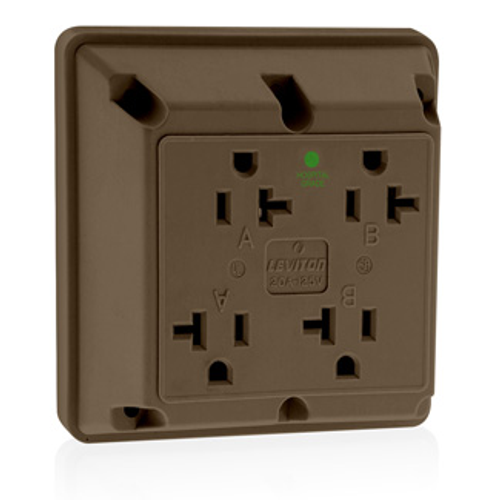

20A 4-in-1 Quadruplex Receptacle/outlet, Hospital Grade (Brown)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$43.67 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Nylon
10 years Warranty
20 Amps
Heavy-Duty Hospital
Brown
Description
–
Features
Specifications
- Reliable - 10-Year Limited Warranty
- All Leviton Hospital Grade Receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.
- 5-20R
- Easy Installation - Termination anchor holes for easy conductor wiring
- Code Compliant - Allows you to increase the number of receptacles in your facility without having to pull new wires
- Durable - Impact and chemical resistant nylon cover and base
Specifications
- Wire: 3
- Pole: 2
- Country of Origin: Mexico
- Device Type: Quadruplex Receptacle Outlet
- Operating Temperature: -40 °C to 60 °C
- Grounding Screw: Plated Steel
- Grounding: Grounding
- Line Contacts: Phosphor Bronze
- CSA C22.2 No. 42: File 152105
- Body Material: Nylon
- Dielectric Voltage: Withstands 2000V per UL498
- At Rated Voltage: 1 HP
- Screw Terminal Torque: 10-12 in-lbs
- Grade: Heavy-Duty Hospital Grade
- Mounting Screws: Zinc-Plated Steel 8-32
- Warranty: 10-Year Limited
- Current Limiting: Full Rated Current
- Brand: 4-in-1
- NEMA: WD-1 WD-6
- NOM: 57
- UL498: File E13399
- Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
- Terminal Accom.: 14-12 AWG
- Amperage: 20 A
- UL498HG: File E13399
- Product ID: Ratings are permanently marked on device
- Torque Range: 12-14 inch pounds
- Color: Brown
- ANSI: C-73
- RoHS Compliant: FALSE
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Voltage: 125 VAC
- Face Material: Nylon
- Strap Material: Galvanized Steel with Riveted Ground Contacts
- Termination: Side Wire
- Flammability: Rated V-2 per UL 94
- Terminal Screws: Brass 8-32
Specs
–
| Poles: | 2 |
|---|---|
| NEMA Rating: | WD-1 WD-6 |
| Material: | Nylon |
| Warranty: | 10 years |
| Country of Origin: | Mexico |
| Amperage: | 20 |
| Ground: | Grounding |
| Terminations: | Side Wire |
| Product Type: | Quadruplex Receptacle |
| Grade: | Heavy-Duty Hospital |
| Color: | Brown |
| Series: | 4-in-1 |
