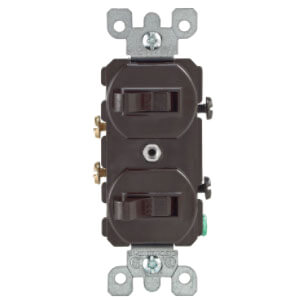

Single-Pole AC Combination Switch, Ground Screw - Brown (120/277V)

The Leviton 5224-2 is a combination switch in brown color. Leviton is a smart choice for today's commercial, residential and industrial buildings. It offers a wide range of devices for different applications. This Leviton 5224-2 combination switch is perfect for commercial use. It has a compact and functional design and comes in different colors. This combination switch is made of thermoplastic, this construction ensures durability. Buy this Leviton 5224-2 combination switch and enjoy quality and reliable use.

Wallplate sold separately.

Quickwire should be used only with copper wiring.

Features:

• Fits standard wallboxes
• Features impact-resistant thermoplastic construction

Specifications:

• HP Rating: 1/2HP-120V
• Max. Amperage: 12 Amp
• Grounding: Grounding
• Switch Amperage: 15 Amp
• Switch Voltage: 120/277V AC
• Dielectric Voltage: Withstands 1500V for 1 minute
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Temperature Rise: Maximum 30 degrees C rise
• Flammability: Rated V-2 per UL94
• Operating Temperature: -40ºC to 65ºC
• Actuator Material: Thermoplastic
• Body Material: Thermoplastic
• Strap Material: Steel
• Color: Brown
• Termination: Side
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Terminal Accom.: 14-12 AWG
• Product ID: Stamped on Strap
• Torque Range: 12-14 inch pounds
• HP Rating: 1/2HP-120V 2HP-240V-277V
• Color: Brown
• Warranty: 10 Year Limited
