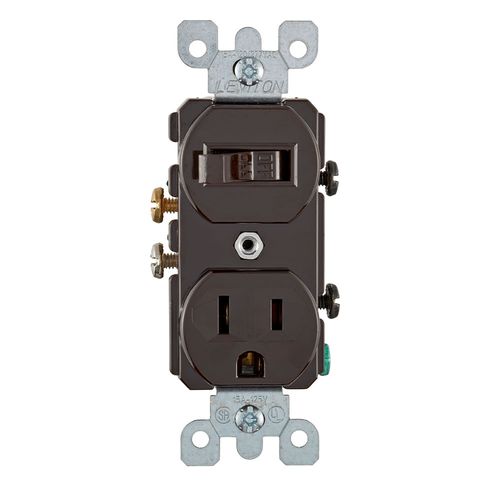

15A, 120V Duplex Style Single-pole/5-15r AC Combination Switch, Commercial Grade, Grounding, Side Wired (Brown)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$13.63 each
In Stock
Get 4 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Features
Specifications
- 5-15R
- Fit standard wallboxes
- Backed by a Limited Two-Year Warranty
- Durable impact-resistant thermoplastic nylon construction
- Functional provides multiple controls in a single-gang space
- AC quiet switches have silver-cadmium oxide contacts and receptacles have double-wipe contacts for maximum conductivity
- Break-off tabs on devices with AC quiet switches permit conversion to seperate feeds
- All devices have grounding screw
- Side wired with terminal screws that accept up to #12 copper or copper-clad wire
- Compatible designed for use with Leviton traditional wallplates
Specifications
- Strap Material: Steel
- Temperature Rise: Maximum 30 degrees C rise
- ANSI: C-73
- UL Standard: UL 20
- Amperage: 15 A
- NEMA: WD-1 & WD-6
- RoHS Compliant: FALSE
- Product Type: Switch/Outlet Combo
- Product ID: Stamped on Strap
- Color: Brown
- Flammability: Rated V-2 per UL 94
- HP Rating: 1/2HP-120V
- Warranty: 2-Year Limited
- Dielectric Voltage: Withstands 1500V for 1 minute
- Operating Temperature: -40 °C to 65 °C
- Torque Range: 14 18 in.-lbs
- Feature: Single-Pole/5-15R
- Terminal Accom.: 14-12 AWG
- Termination: Side
- Voltage: 120 VAC
- Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
- NOM: 57
- CSA C22.2 No. 111: File #152105
- Receptacle Amperage: 15 Amp
- Switch Voltage: 120V AC
- Country of Origin: Mexico
- Type: Duplex Style Combination Switch
- Body Material: Thermoplastic
- Pole: 1
- Max. Amperage: 12 Amp
- Actuator Material: Thermoplastic
- Receptacle Voltage: 125V AC
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Grounding: Grounding
- Switch Amperage: 15 Amp
Specs
–
| Country of Origin: | Mexico |
|---|
