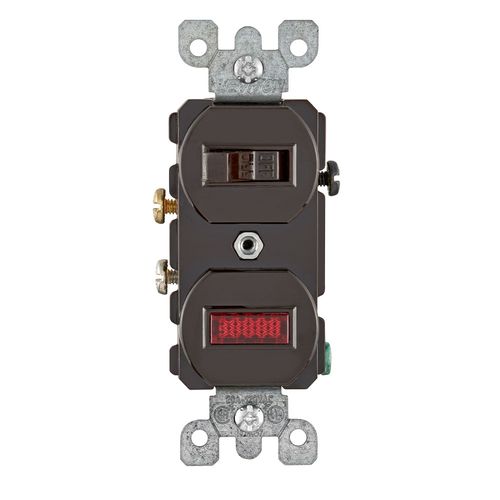

20A Duplex Single-pole Switch/ Neon Pilot Combination Device, Non-grounding (Brown)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$21.19 each
In Stock
Get 5 Tomorrow, Jul 7
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Features
Specifications
- With Leviton's extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and Tamper-Resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited two-year warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
Specifications
- CSA C22.2 No. 111: File #152105
- Voltage: 120 VAC
- Switch Amperage: 20 Amp
- Feature: Single-Pole/Neon Pilot
- HP Rating: 1HP-120V 2HP-240V-277V
- Switch Voltage: 120/277V AC
- Operating Temperature: -40 °C to 65 °C
- Type: Duplex Style Combination Switch
- Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
- Grounding: Non-Grounding
- Product ID: Stamped on Strap
- NEMA: WD-1 & WD-6
- Strap Material: Steel
- NOM: 57
- Dielectric Voltage: Withstands 1500V for 1 minute
- UL Standard: UL 20
- Color: Brown
- Torque Range: 14 18 in.-lbs
- Amperage: 20 A
- Max. Amperage: 16 Amp
- Country of Origin: Mexico
- Pole: 1
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Product Type: Switch/Pilot Combo
- Warranty: 2-Year Limited
- Actuator Material: Thermoplastic
- Flammability: Rated V-2 per UL 94
- ANSI: C-73
- RoHS Compliant: FALSE
- Terminal Accom.: 14-12 AWG
- Termination: Side
- Temperature Rise: Maximum 30 degrees C rise
- Body Material: Thermoplastic
Specs
–
| Country of Origin: | Mexico |
|---|
