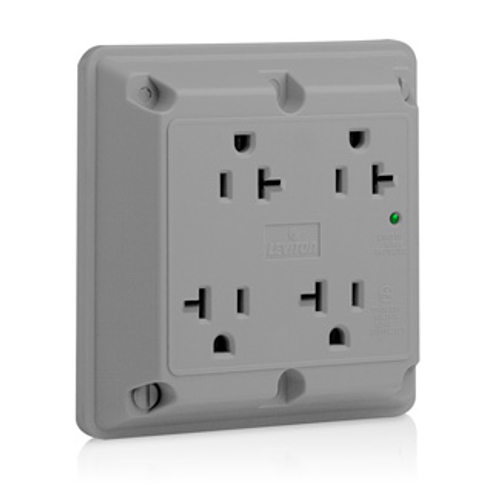

Main product image of 20A, 125V SuRGe Protected Quadruplex Receptacle, Industrial Grade (Gray)
Magnifying glass
Hover image to zoom

20A, 125V SuRGe Protected Quadruplex Receptacle, Industrial Grade (Gray)

Brand:
Leviton
SKU:
5490-GY
Rating:
(0)
Q&A:
(0)
20A, 125V SuRGe Protected Quadruplex Receptacle, Industrial Grade (Gray)
Magnifying glass
Hover image to zoom
$79.45 each
Out of Stock
Out of Stock
Get it Mon, Jul 27 - Mon, Aug 3
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Color
Gray
Product Highlight: Grade
Commercial
Product Highlight: Warranty
5 years Warranty
Product Highlight: Amperage
20 Amps
Product Highlight: Material
Nylon

Description

–
Features
  • Reliable - 5-Year Limited Warranty
  • Durable - Impact and chemical resistant nylon cover and base
  • 5-20R
  • Easy Installation - Termination anchor holes for easy conductor wiring
  • Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
  • Code Compliant - Allows you to increase the number of receptacles in your facility without having to pull new wires

Specifications
  • RoHS Compliant: FALSE
  • Warranty: 5-Year Limited
  • Operating Temperature: -40 °C to 60 °C
  • Terminal Accom.: 14-10 AWG
  • Wire: 3
  • MCOV: 150V rms
  • Yoke: Zinc-Plated Steel
  • Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
  • Ground Clips: Brass-Plated Steel
  • Termination: Back or Side Wire
  • Grounding: Grounding
  • Line Contacts: Brass Triple-Wipe
  • Pole: 2
  • Amperage: 20 A
  • Country of Origin: Mexico
  • Terminal Screws: Brass-Plated Steel
  • Function: Surge Protective
  • Face Material: Nylon
  • Grounding Screw: Brass-Plated Steel
  • Torque Range: 14-16 inch pounds
  • Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
  • Product ID: Ratings are permanently marked on device
  • Screw Terminal Torque: 14-18 in-lbs
  • Grade: Commercial Specification Grade
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • UL Fed Spec WC-596: File E13399
  • Joules Rating: 720
  • Diagnostics: Indicator Light
  • NEMA: WD-6
  • At Rated Voltage: 1 HP
  • Clamp Nuts: Zinc-Plated Steel
  • Brand: 4-in-1
  • Short Circuit Current Rating: 5kA
  • Color: Gray
  • Body Material: Nylon
  • VPR: L-N:500V, L-G:600V, N-G:500V
  • Current Limiting: Full Rated Current
  • Noise Rejection: -30dB at 500kHz-300MHz
  • UL1449 Impulse 6kV/500A L-N: 330V
  • Flammability: Rated V-2 per UL 94
  • Voltage: 125 VAC
  • NOM: 57
  • Shutter Mechanism: Delrin Acetal
  • Nominal Discharge Current Rating: 3kA
  • ANSI: C-73
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Dielectric Voltage: Withstands 2000V per UL498
  • Device Type: Quadruplex Receptacle

Specs

–
Terminations:

Back Wire

Side Wire

Product Type:

Quadruplex Receptacle

Color:

Gray

Grade:

Commercial

NEMA Rating:

WD-6

Warranty:

5 years

Series:

4-in-1

Amperage:

20

Country of Origin:

Mexico

Ground:

Grounding

Material:

Nylon

Poles:

2
