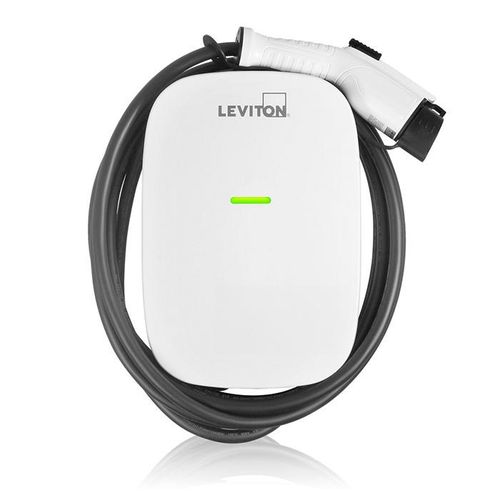

Leviton EV320 Level 2 Electric Vehicle Charging Station with 18' Cord and J1772 Charge Connector (32A, 208/240 VAC, 7.6kW)
The Leviton EV320 delivers Level 2 charging for any SAE J1772 compatible electric vehicle, operating at 32 amps and 208/240 VAC with 7.6kW output. This hardwired-only charging station includes an 18-foot charging cord with J1772 connector, mounting bracket, and pre-attached input cable for straightforward installation. Designed for indoor and outdoor use, the EV320 serves residential and light commercial applications where reliable EV charging is essential. This unit replaces the EVR30-B1C and EVR30-R2C models.
Key Features & Benefits
Compatibility & Requirements
The EV320 requires hardwired connection to a dedicated 208 or 240 VAC circuit rated for at least 40 amps (125 percent of the 32-amp continuous load). Installation must comply with the National Electrical Code (NEC) Article 625 for electric vehicle supply equipment and all local electrical codes. Installation should be performed by a qualified licensed electrician. The unit does not include a plug or receptacle and cannot be adapted for plug-in use. Any SAE J1772 equipped vehicle charges with this station; verify your vehicle's onboard charger accepts the full 32-amp output for maximum charging speed.
Installation & Care

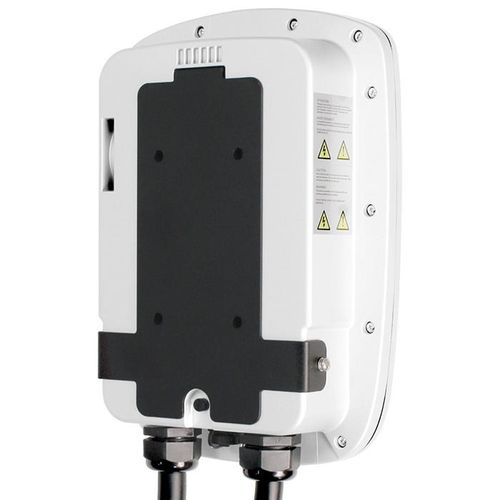

Mount the charging station to a wall or compatible pedestal using the included bracket and hardware, ensuring the enclosure remains level and the cord hangs freely. Route the pre-attached input cable to the electrical panel and connect to the dedicated 40-amp circuit breaker, following all NEC 625 requirements for branch circuit sizing and ground-fault protection. Verify voltage at the terminals matches your supply (208 or 240 VAC) before energizing the circuit. Inspect the charging cord and connector monthly for damage, abrasion, or cracking; replace the cord assembly if any defects appear. Clean the enclosure exterior with a damp cloth; avoid pressure washing or solvent-based cleaners that may damage the thermoplastic housing. Keep the J1772 connector holster free of debris and moisture when not in use.
What's Included
Frequently Asked Questions
Q: Can the EV320 be converted to plug into a NEMA 14-50 outlet instead of hardwiring?
A: No. The EV320 ships with a pre-attached input cable for hardwired installation only and cannot be adapted for plug-in use.
Q: How do I enable the RFID access control feature?
A: The unit ships with RFID disabled. Tap a compatible RFID card to the station to activate controlled access.
| NEMA Rating: | 3R |
|---|---|
| Voltage: | 208/240 VAC |
| Amperage: | 32 |
