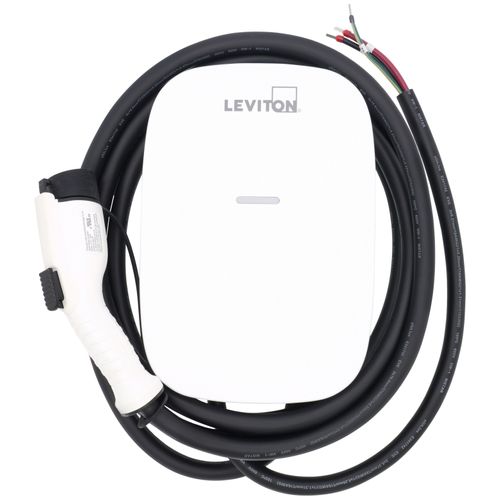

Leviton EV48W EV Series Standard Level 2 Electric Vehicle Charging Station w/ 18' Cord & J1772 Charge Connector, Wi-Fi Enabled (48A, 208/240 VAC, 11.6kW)

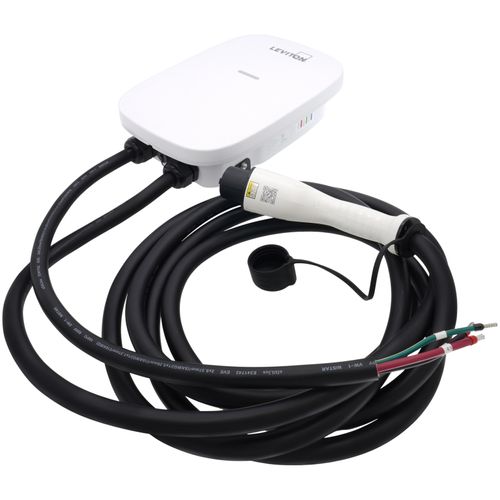

The Leviton EV48W delivers 11.6kW of Level 2 charging power at 48 amps on 208/240 VAC circuits, built for hardwired installation with a pre-attached input cable and an 18-foot charging cord. This Wi-Fi-enabled station includes an industry-standard J1772 charge connector and a NEMA 3R water-resistant enclosure designed for both indoor and outdoor use. The EV48W replaces the previous EVR40-B2C model.
Key Features & Benefits
Compatibility & Requirements

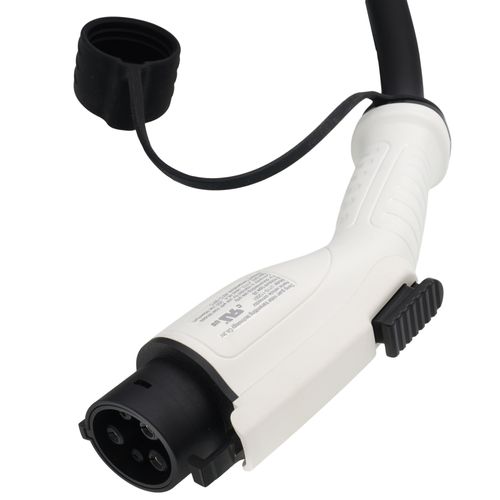

This station requires a dedicated 60-amp circuit breaker and hardwired connection to 208 or 240 VAC power. Installation must be performed by a qualified electrician familiar with electric vehicle supply equipment and local electrical codes. The J1772 connector works with all vehicles meeting SAE J1772 standards. Tesla owners need a Tesla-supplied adapter to connect to the J1772 plug. Verify your vehicle's maximum charging rate to confirm full utilization of the 48-amp output. Check local building and electrical codes before installation, as some jurisdictions impose additional requirements for outdoor electrical equipment or EV charging stations.
Installation & Care

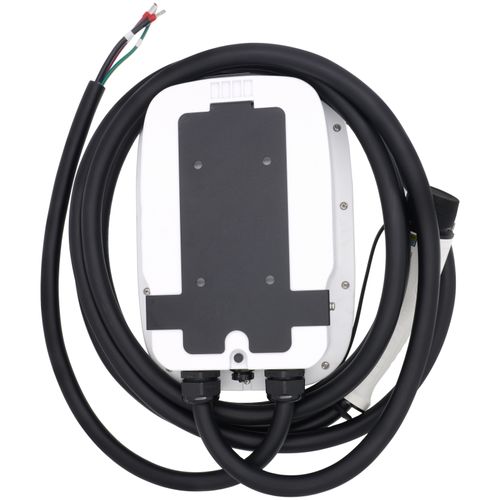

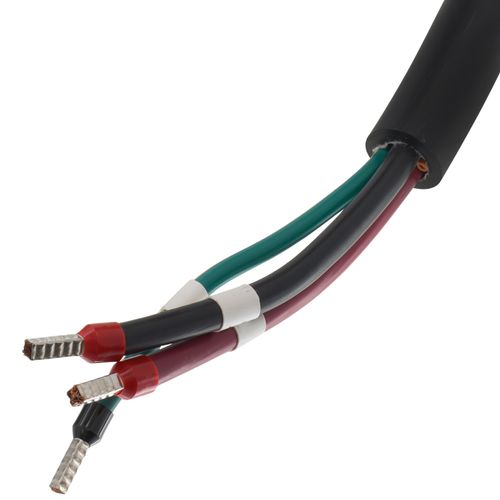

Turn off power at the main panel before beginning installation. Mount the included bracket on a wall or vertical surface capable of supporting the charger's weight, ensuring at least 18 inches of clearance on all sides for ventilation and cord management. Route the pre-attached input cable to the electrical panel and connect to a dedicated 60-amp breaker according to the wiring diagram in the install instructions. Secure all conduit connections and verify tight terminations at both the charger and breaker. Restore power and test the unit for proper operation using the My Leviton App. Inspect the charging cable quarterly for cuts, abrasions, or damage, replacing it if the outer jacket shows wear. Keep the connector clean and dry when not in use. Avoid coiling the cable tightly around the unit, as repeated tight bends reduce cable life. Wipe the enclosure with a damp cloth as needed to remove dust or debris.
What's Included
Frequently Asked Questions
Q: What size breaker does the Leviton EV48W require?
A: The EV48W requires a dedicated 60-amp circuit breaker and must be hardwired directly to the electrical panel.
Q: Can this charger be used outdoors in freezing temperatures?
A: Yes, the NEMA Type 3R enclosure and freeze-resistant cable are designed for outdoor installation and operation in extreme weather conditions.
| Amperage: | 48 |
|---|---|
| NEMA Rating: | 3R |
| Voltage: | 208/240 VAC |
