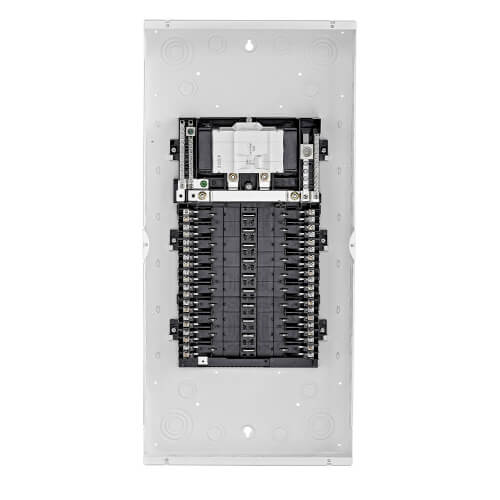

20 Circuit, 20 Space Indoor Load Center Main Breaker, 120/240V (100A)

Indoor Load Center with 100A Main Circuit Breaker Factory Installed, 20 Spaces, NEMA 1 Rated. Includes Enclosure and Interior Only. Door Sold Separately.

Features & Benefits:

• EASY - EASY - Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present in the breaker box
• SUPERIOR CONDUCTIVITY - All Leviton Load Centers come standard equipped with tin plated copper bussing
• ORGANIZED - Notches stamped into the enclosure for cable ties promote secure and neat wiring in the breaker box
• MODERN DESIGN - Features a white, powder coated finish for a sleek, modern appearance

Specifications:

• Amperage: 100
• Short Circuit Current Rating: 22 KA
• Spaces: 20
• Circuits: 20
• Type of Load Center: Main Breaker
• Voltage: 120/240V
• Color: White
• Enclosure Material: Galvanized Steel, White Powder Coat
• NEMA Enclosure Type: NEMA 1 Indoor
• Warranty: 10 year Limited

Standards & Certifications:

• UL 50
• UL 50E
• UL 67
• UL 869A

Note: Cover Door is sold separately:

• Cover Door without window: LDC20 20 Space Indoor Load Center Cover & Door (White)
• Cover Door with window: LDC20-W 20 Space Indoor Load Center Cover & Door w/ Window (White)
