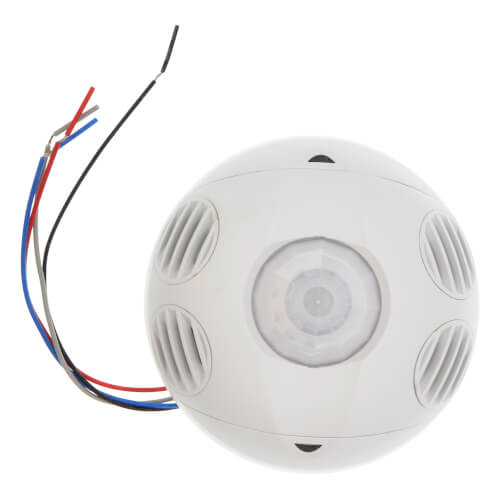

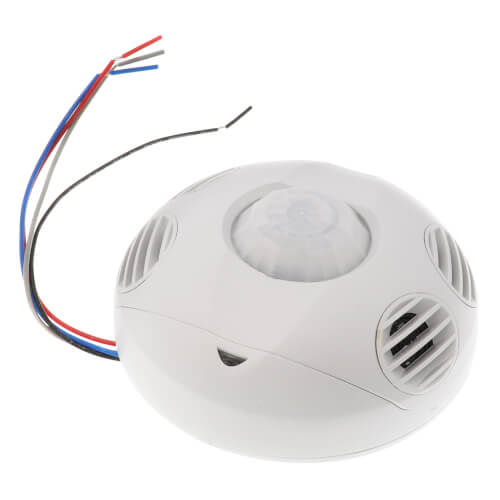

Multi-sensing 360 Degree Occupancy Sensor, Ceiling Mount, 2000 Sq. Ft. Coverage - White

Occupancy Sensor lighting control, Ceiling Mounted, Multi-technology, 24VDC, 30mA power consumption, 2000 sq ft, 360 degree (major motion: PIR: 40' diameter; U/S:64'Lx32'W, minor motion: U/S: 45'Lx23'W), red LED=PIR, green LED=U/S auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', cUL/NOM/ANCE listed, CEC Title 24 compliant. Color: off-white.

The most advanced sensor available. Combines multi-technology with all-digital architecture. Eliminates false triggering. The result is a trouble-free, “install and forget” solution for lighting control.

Leviton backs its occupancy sensors and their great features with an excellent 5-year limited warranty.

Features:

• Small Size- Installed sensor appears almost invisible
• Fast Simple Installation- Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment
• Accurate, Consistent Switching- Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated
• Self-Adapting- An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated
• Maximum Reliability, Low Cost- All digital circuitry uses a minimum of components
• Non-Volatile Memory- Learned and adjusted settings saved in protected memory. Power outages will not cause status loss
• Ambient Light Recognition- The photocell prevents lights from turning on when room is adequately lit by natural light
• Typical Applications- Cafeteria, Computer Room, Conference Rooms, Office Private, Office Executive, Office w/Cubicles, Office Open, File Room, Classroom, Lounge, All Restroom types, Open Area, Work Space General, Workout Facility or Gymnasium

Specifications:

• Sensor Type: Multi-Technology
• Adjustment: Self-Adjusting
• Sensor Technology: PIR/Ultrasonic 32kHz
• Pattern Degrees: 360
• Coverage Range Sq. Ft.: 2000
• Manual Time Adjustment: 30s-30m, 6s Test Mode
• Load Rating: Uses Power Pack
• Input Voltage: 24VDC
• Current Consumption: 30mA
• Photo Cell: Ambient Override ON
• Color: White
• Standards and Certifications: CUL/US Cert
• Housing Material: High-Impact, Injection Moulded Plastic
• Code Compliance: California Title 24
