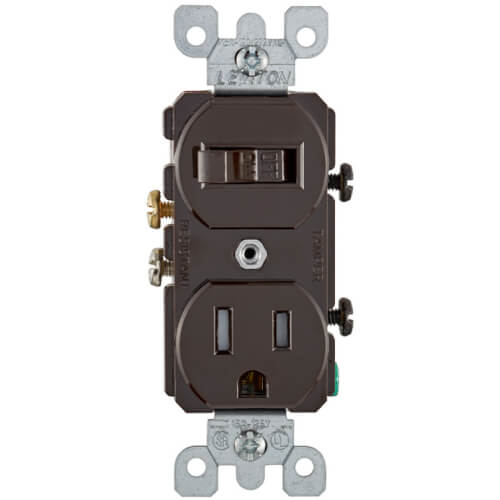

Duplex Style Single Pole Switch/Receptacle, 15A - Brown (120V)

The Leviton T5225 is a duplex style single-pole combination switch in brown color. Leviton is a smart choice for today's commercial, residential and industrial buildings. It offers a wide range of devices for different applications. Leviton's collection of combination devices help you to fill a one-gang space with a switch and receptacle, two switches, or even a switch and GFCI. This Leviton T5225 tamper resistant combination switch is perfect for commercial use. It has a compact and functional design and comes in different colors. This combination switch is made of thermoplastic, this construction ensures durability. Buy this Leviton T5225 duplex style combination switch and enjoy quality and reliable use.

Features:

• Fits standard wallboxes
• Features impact-resistant thermoplastic construction

Specifications:

• HP Rating: 1/2HP-120V
• Max. Amperage: 12 Amp
• Grounding: Grounding
• Receptacle Amperage: 15 Amp
• Receptacle Voltage: 125V AC
• Switch Amperage: 15 Amp
• Switch Voltage: 120V AC
• Dielectric Voltage: Withstands 1500V for 1 minute
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Temperature Rise: Maximum 30 degrees C rise
• Flammability: Rated V-2 per UL94
• Operating Temperature: -40ºC to 65ºC
• Actuator Material: Thermoplastic
• Body Material: Thermoplastic
• Strap Material: Steel
• Color: Brown
• Termination: Side
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Terminal Accom.: 14-12 AWG
• Product ID: Stamped on Strap
• Torque Range: 12-14 inch pounds
