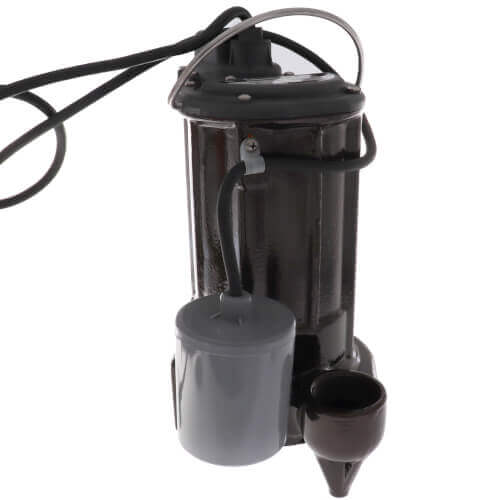

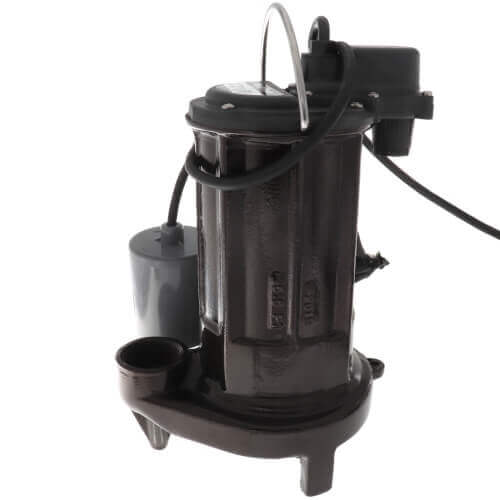

1/2 HP Automatic Effluent Pump w/ Wide-Angle Piggyback Float Switch - 115v, 25 ft Cord
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$380.25 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
25'
62.5 GPM
1/2 HP
115V
Description
–
The 283 Model features a fully adjustable wide-angle float.
Differential adjustments can be made easily by tethering the float to the discharge pipe or other mounting point. It comes factory-equipped with a wide-angle float switch. This switch is mercury-free, mechanically activated and mounted to the pump. This pump has two cords - one to the float switch and the other to the pump motor. The switch cord has a series (piggyback) plug enabling the pump (motor) cord to be plugged into the back of it. The purpose of this design is to allow temporary manual operation of the pump if so desired. Use for De-watering, Sump and Effluent Applications.
Features:
Vortex style impeller permitting passage of solids up to 3/4"
416 stainless steel rotor shaft
Permanently lubricated upper and lower ball bearing
Carbon and ceramic mechanical face seal
Epoxy powder coat finish
All fasteners are corrosion-resistant stainless steel
1-1/2" Discharge

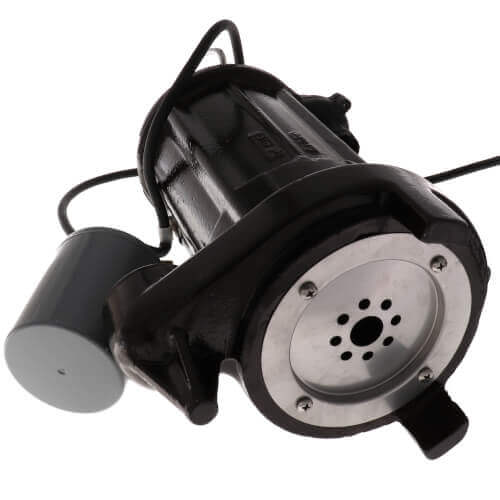

Stainless steel bottom screen which is easily removable Maximum fluid temperature: 140°F
Features:
Specs
–
| Cord Length: | 25' |
|---|---|
| Shutoff Head (ft.): | 37' |
| Type: | Automatic |
| Flow at 5 FT Head: | 62.5 GPM |
| Horse Power: | 1/2 |
| Voltage: | 115V |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
A great replacement for a Liberty 280
We purchased this pump when our Liberty 280 model pump failed in our septic system. The 280 model at SupplyHouse was backordered until Sept/Oct, but we needed it now! The only difference between the models is the piggy back float switch that the 283 comes with that the 280 does not have. We ordered this pump and super fast shipping (free) got it to us within 4 days. We just removed the float switch and installed the pump only, because our system uses separate, independent float switches to control the pump and alarm. Now we have a spare float too. We'll be ordering another one of these pumps to have on hand as a spare. Thanks for the easy order and fast shipping SupplyHouse!
Kim
Cathlamet,WA
2 years ago
Verified Buyer
Was this review helpful to you?
Excellent pump
Needed to install a new pump for effluent use. Works great. only thing was the output pipe connection is 1-1/2" where my pipe was 2" so I needed to use an adapter. not sure if the pump is a psc motor but it is advertised as efficient which does not mean squat.
Lakehouse fix
Lakewood, WI
2 years ago
Verified Buyer
Was this review helpful to you?
Great Pump, Great Supplier...
Bought this pump to replace one that was 24 years old and still working, just for peace of mind. Plus the 24 y.o. pump was getting a little noisy. This new Liberty 283 pump seems to be of very good quality and runs quietly. With regards to the SupplyHouse, I find their website easy to use, ordering is easy, and their deliveries have always been reliable. I will continue to buy products from them.
Larry_Jo
East Troy, WI
5 years ago
Verified Buyer
Was this review helpful to you?
